Optical structures having integrated component layers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jun 2, 2014
filing date -
Jun 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

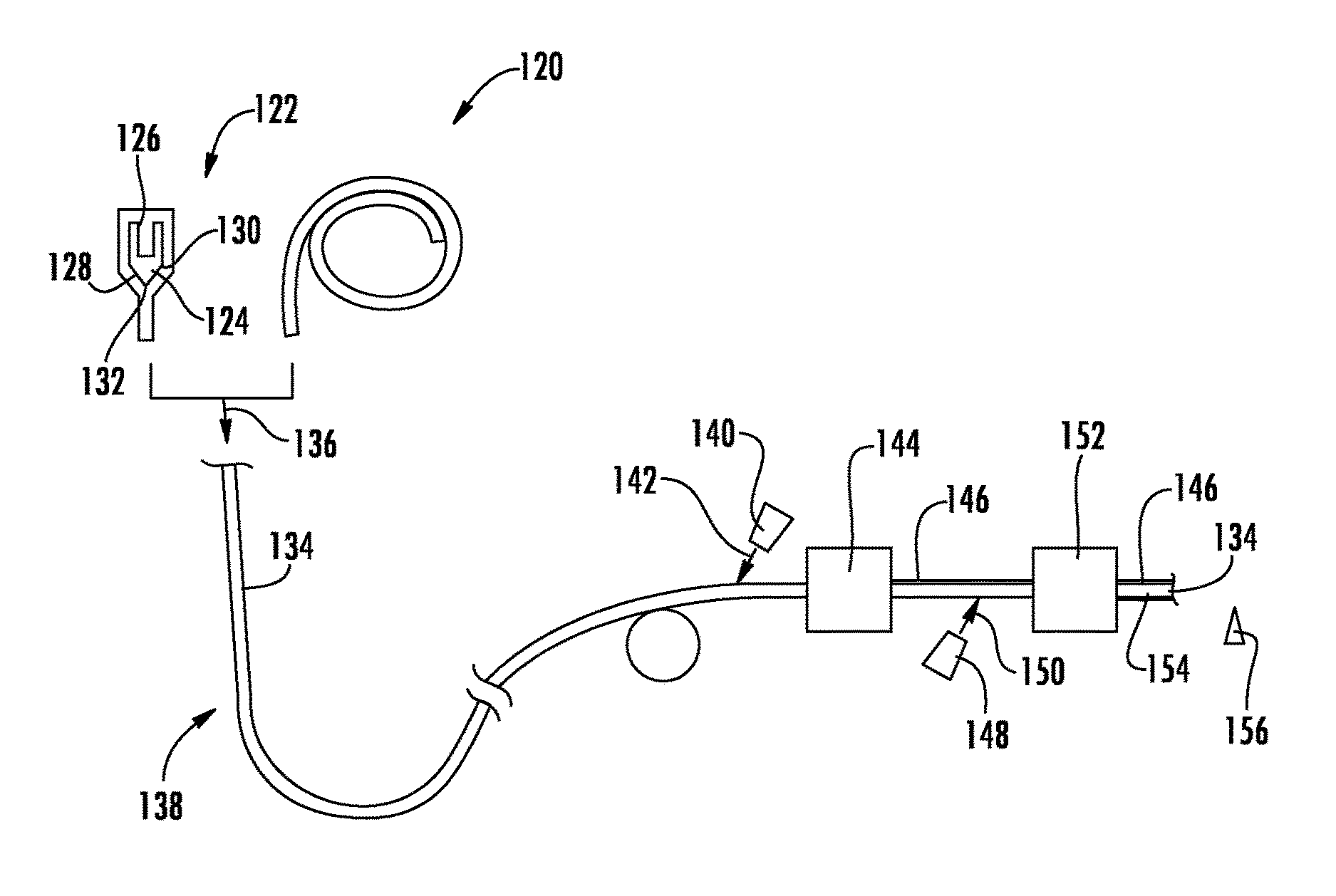

A method of forming an optical structure in a continuous manufacturing process includes providing a continuous ribbon of flexible glass substrate (134) having a thickness of no more than 0.3 mm. The continuous ribbon of flexible glass substrate has a first side and a second side separated by a plane formed by the ribbon of flexible glass substrate. A liquid polarizer material (142) is applied on the ribbon of flexible glass substrate at one of the first and second sides as the continuous ribbon of flexible glass substrate moves by a polarizer material application apparatus to form a polarizing layer. A conductive material (150) is applied on the ribbon of flexible glass substrate at one of the first and second sides to form a touch layer for a touch sensitive display.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C03C Class
- 786 Applications Filed
- 656 Patents Issued To-Date
- 83.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- C03C Class
- 32.33 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
