Input device and detection method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Oct 20, 2015
filing date -
Nov 10, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

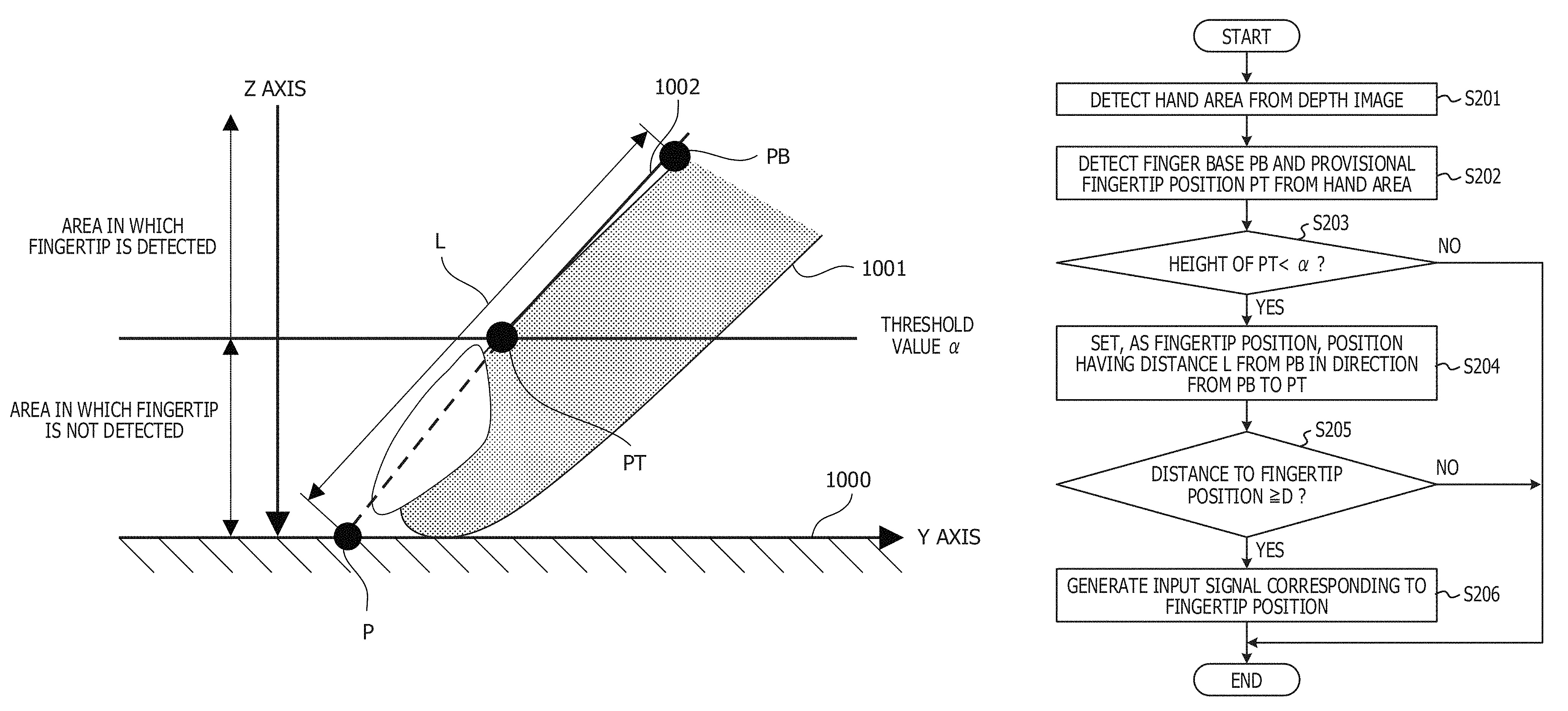

An input device includes: a memory configured to store a length of a finger; and a processor configured to obtain a depth image that includes a hand and has pixel values corresponding to a distance from a camera to subjects including the hand, detect a hand area that corresponds to the hand from among the subjects, from the depth image, identify a tip end of the hand area and a base of the finger, identify a first three-dimensional position that corresponds to the tip end and a second three-dimensional position that corresponds to the base, based on the pixel values of the depth image, identify a direction from the second three-dimensional position to the first three-dimensional position, calculate a third three-dimensional position that corresponds to a fingertip of the finger based on the direction and the length, and generate an input signal according to the third three-dimensional position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G06T Class
- 22.86 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
