Adaptive power capping in a chip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jan 4, 2016
filing date -
Jan 4, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

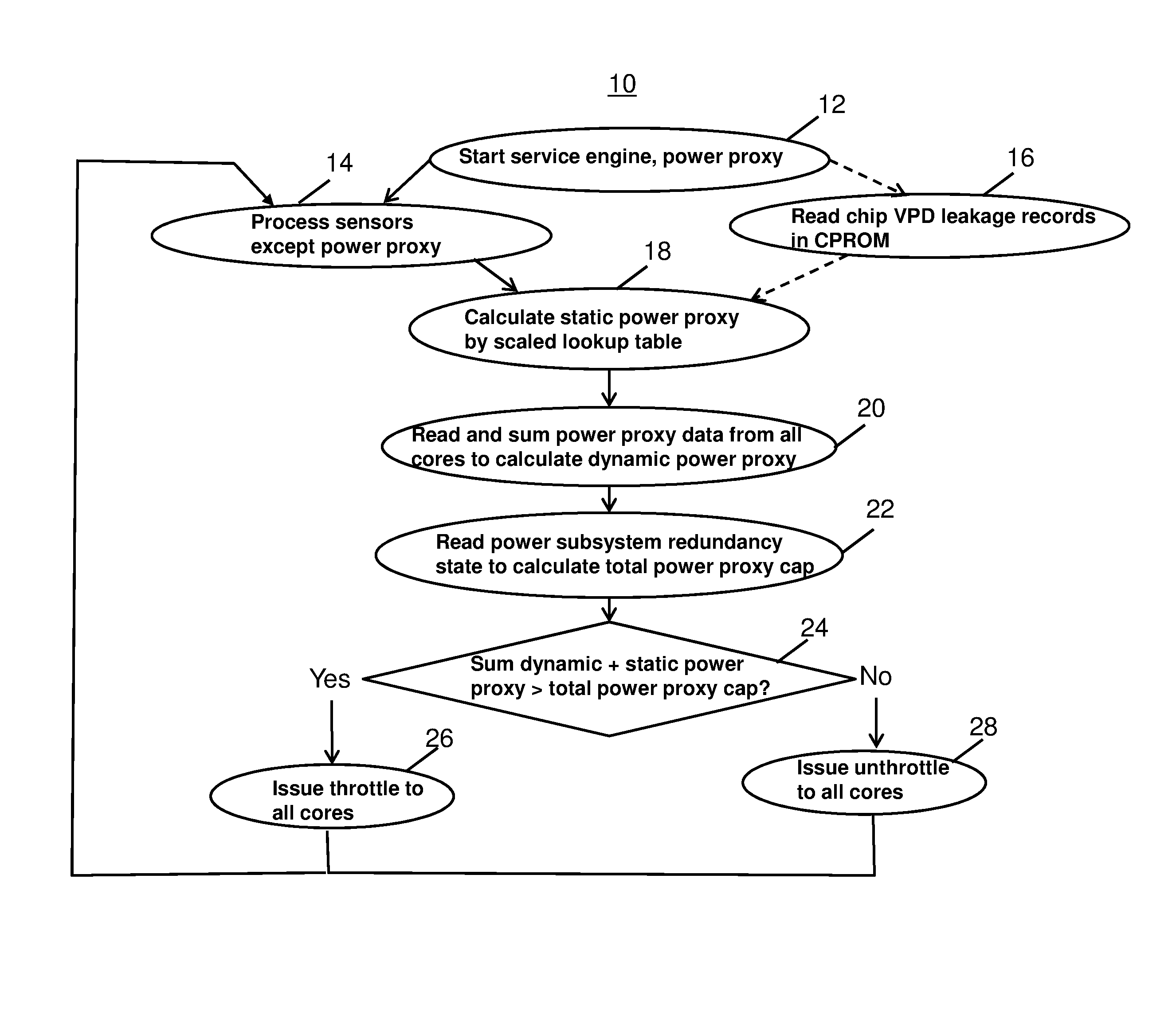

Adaptive power capping in a chip that includes a plurality of cores in a processing system is provided. An active power demand for the chip is dynamically determined based on observed events of the cores. An average temperature of the chip is computed using one or more on-chip thermal sensors in the cores to estimate leakage power of the chip. A power capping threshold that incorporates the estimate of leakage power is determined based on the average temperature of the chip. Power capping is performed by throttling the cores based on determining that the active power demand for the chip exceeds the power capping threshold.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- G06F Class
- 60255 Applications Filed
- 46180 Patents Issued To-Date
- 76.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G06F Class
- 20.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
