Bendable display apparatus and supporting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Dec 9, 2016
filing date -
Dec 9, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

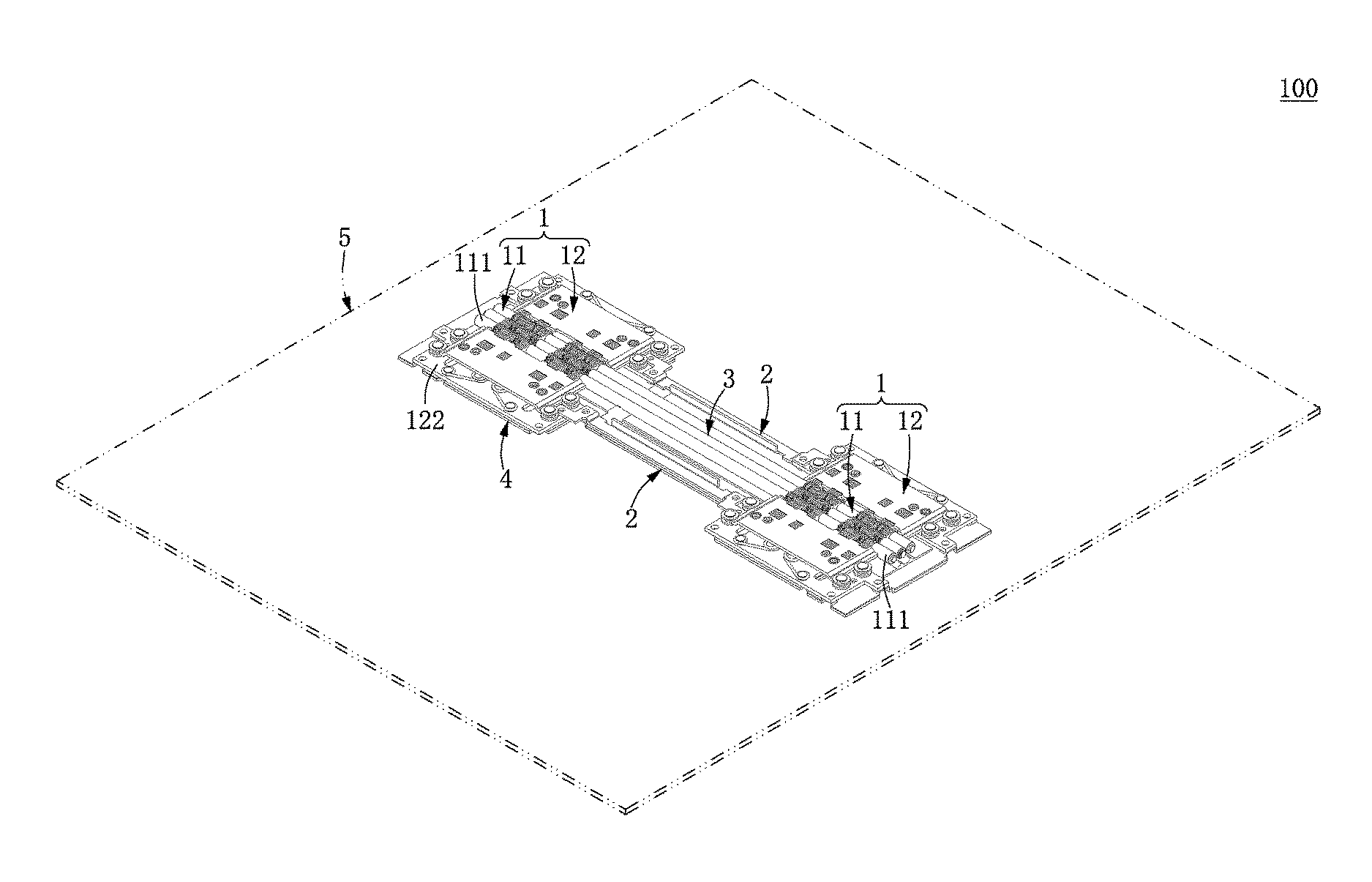

A supporting device includes a hinge module and two buffering modules respectively installed on two opposite sides of the hinge module. Each buffering module includes an internal linking member fixed on the hinge module, an external linking member slidably disposed on the internal linking member, and an elastic member connected to the internal linking member and the external linking member. The hinge module is bendable between an unfolded position and an outwardly folded position. When the hinge module is at the unfolded position, the supporting device is a flat construction, and the elastic members are configured to block the external linking members to move away from the pivots. When the hinge module is at the outwardly folded position, the supporting device is a curved construction and the internal linking members are arranged at the inner side of the curved construction.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- G06F Class
- 60255 Applications Filed
- 46180 Patents Issued To-Date
- 76.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 27 Citation Count
- G06F Class
- 92.44 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
