Reference current generating circuitry, A/D converter, and wireless communication device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Dec 22, 2016
filing date -
Feb 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

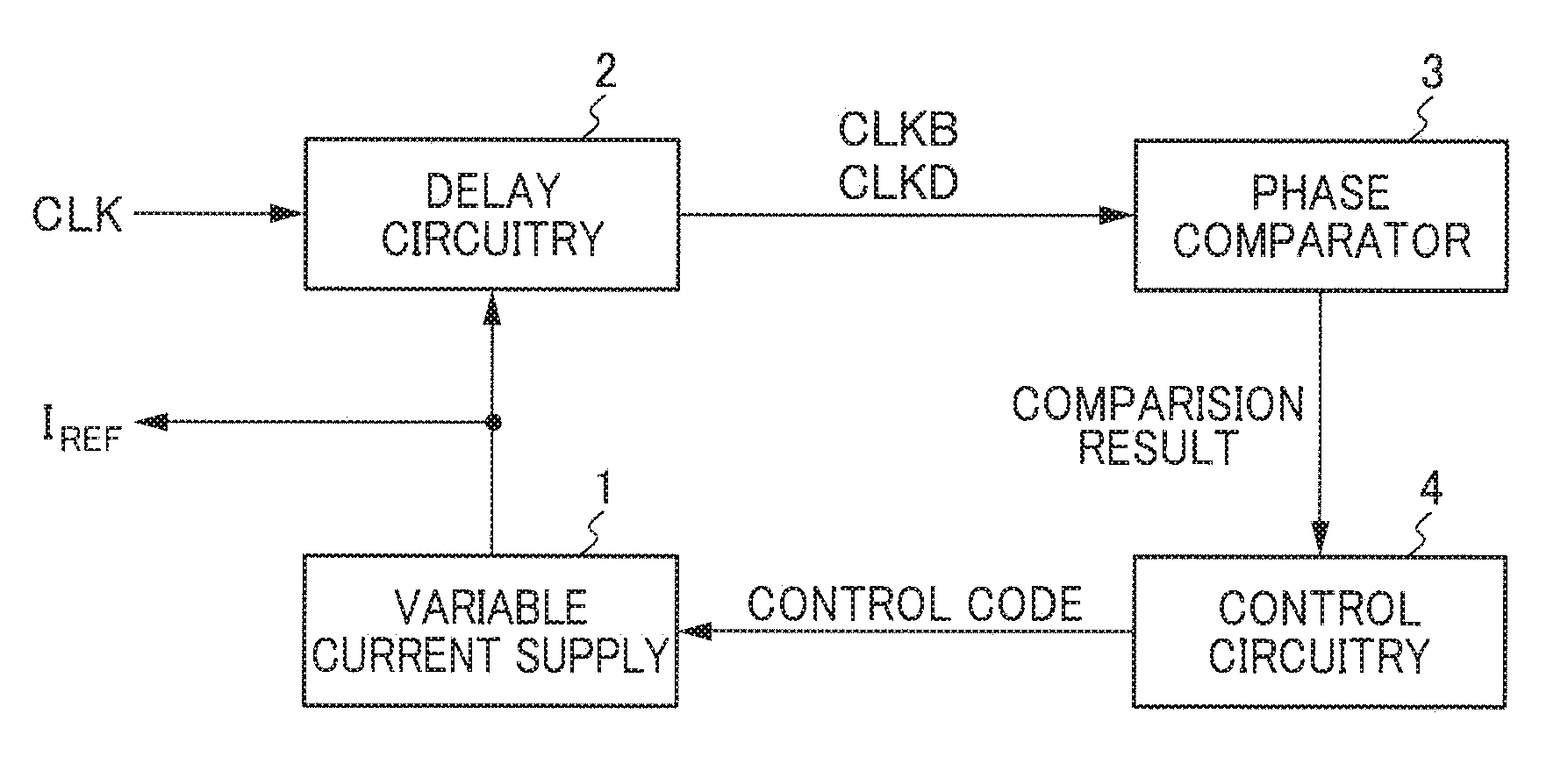

A reference current generating circuit has a variable current supply to output a reference current, delay circuitry to generate a reference clock by delaying a clock by a reference delay amount and a delay clock by delaying the clock depending on a current value of the reference current, a phase comparator to compare a phase of the reference clock with a phase of the delay clock to output a comparison result, and control circuitry to control the current value of the reference current based on the compared result.
