Image forming apparatus with cover connector
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 31, 2016
filing date -
Sep 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

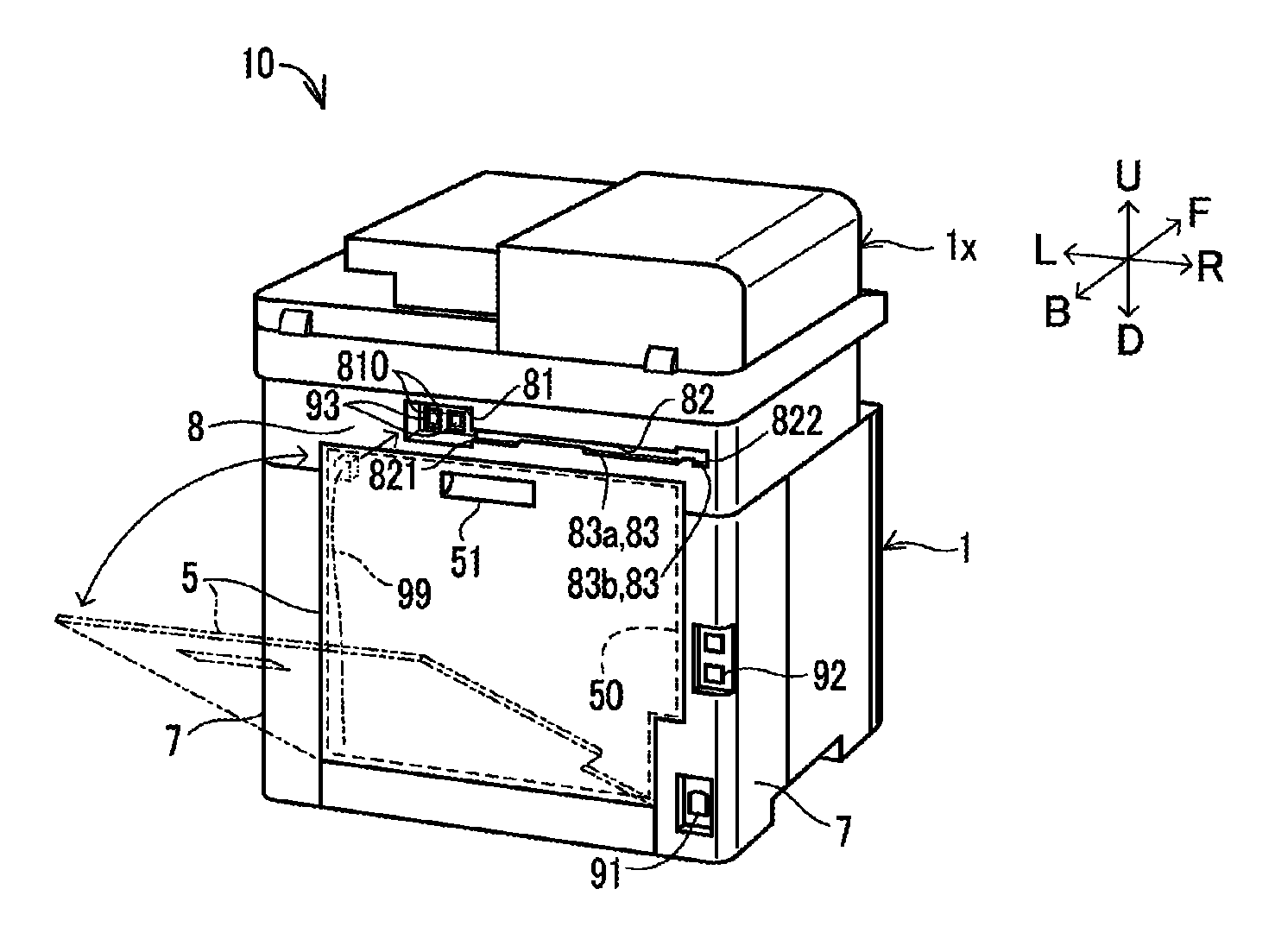

An image forming apparatus includes an exterior cover, a connector, and an upper exterior member disposed above the exterior cover. The upper exterior member includes a groove portion and projections. In the upper exterior member, the groove portion is formed so as to extend from a first end closer to the connector to a second end closer to one of left and right side ends of the exterior cover. The projections are formed so as to project upward from a lower edge portion of an opening of the groove portion. A cable connected to the connector is inserted in the groove portion. The projections prevent the cable from being dropped from the groove portion.
