Process cartridge, electrophotographic image forming apparatus, and electrophotographic photosensitive drum unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Mar 10, 2017
filing date -
Dec 22, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

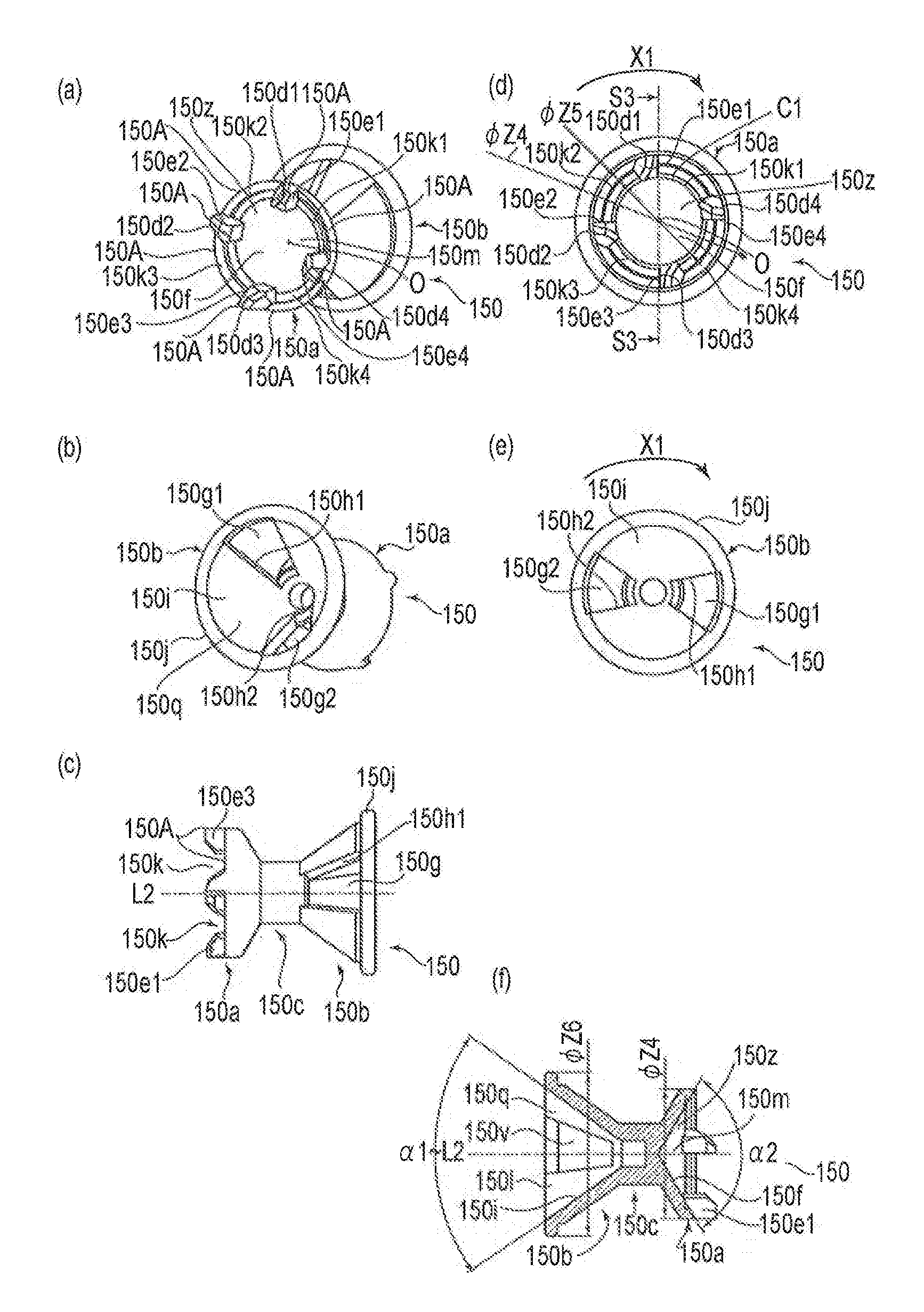

A drum unit includes a photosensitive drum having an axis L1, a drum flange provided at an end of the photosensitive drum, and a coupling member having an axis L2. The coupling member includes (i) a first end portion connected to the drum flange, (ii) a second end portion including at least one projection, and (iii) a connecting portion connecting the first end portion and the second end portion. The coupling member is movable between (i) a first position in which a tip of the at least one projection is a first distance away from the photosensitive drum as measured in the direction of the axis L1 and (ii) a second position in which the tip of the at least one projection is a second distance away from the photosensitive drum as measured in the direction of the axis L1.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G03G Class
- 2629 Applications Filed
- 2246 Patents Issued To-Date
- 85.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 21 Citation Count
- G03G Class
- 97.37 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
