Methods of forming hardmask material film
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jan 29, 2016
filing date -
Jan 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

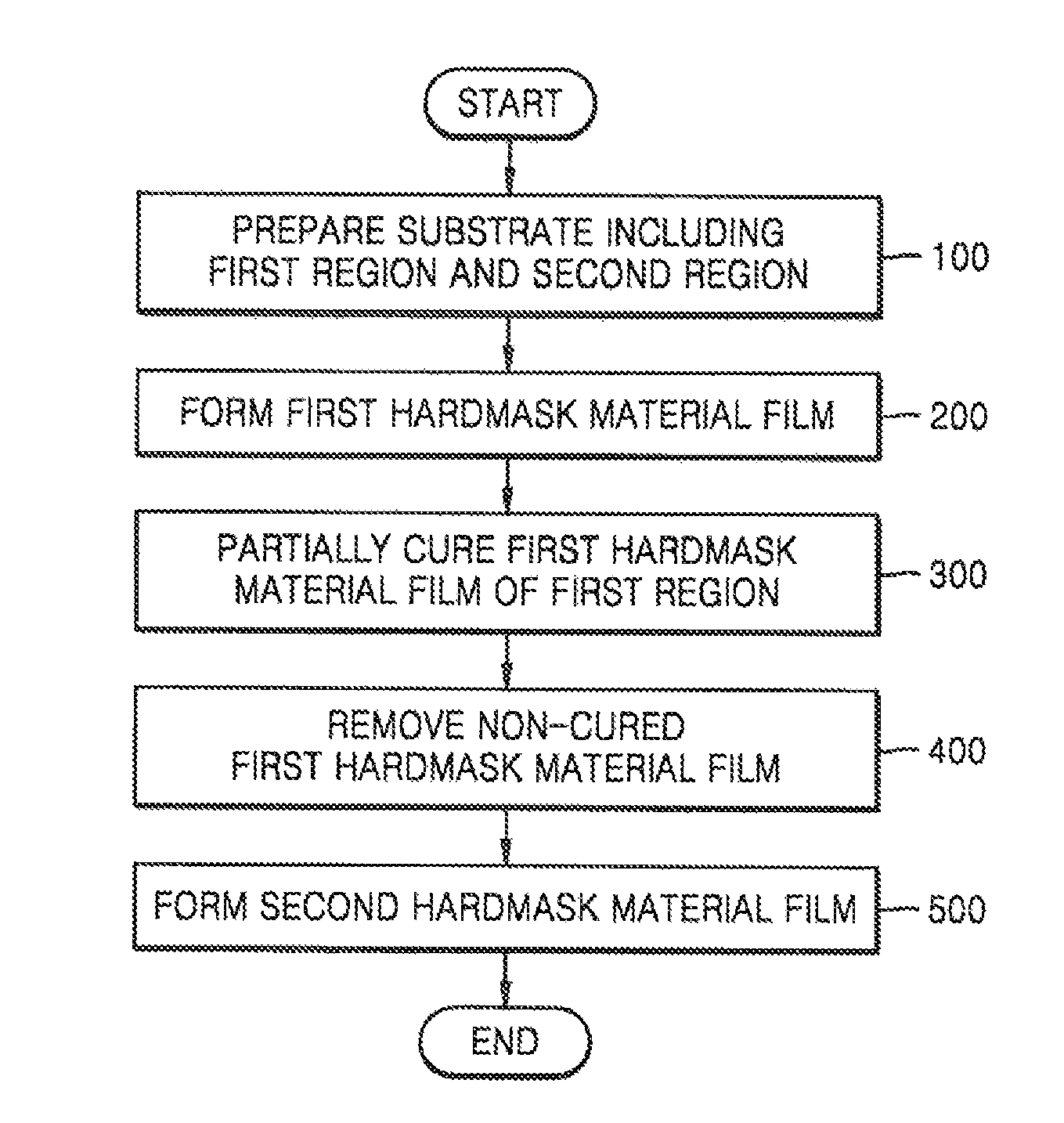

Methods of forming a hardmask material film are provided. The methods may include preparing a substrate including a first region that includes first patterns with a first density and a second region that includes second patterns with a second density that is lower than the first density or is free of patterns, forming a first hardmask material film in gaps between the first patterns and on surfaces of the first region and the second region, performing a heat treatment on the first hardmask material film such that solvent solubility of portions of the first hardmask material film in the gaps between the first patterns becomes different from solvent solubility of portions of the first hardmask material film outside the gaps, removing the first hardmask material film formed on the surfaces of the first region and the second region such that the portions of the first hardmask material film in the gaps at least partially remain in the gaps, and forming a second hardmask material film on the surfaces of the first region and the second region.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
