Grade annunciator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 13, 2013
filing date -
Oct 16, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

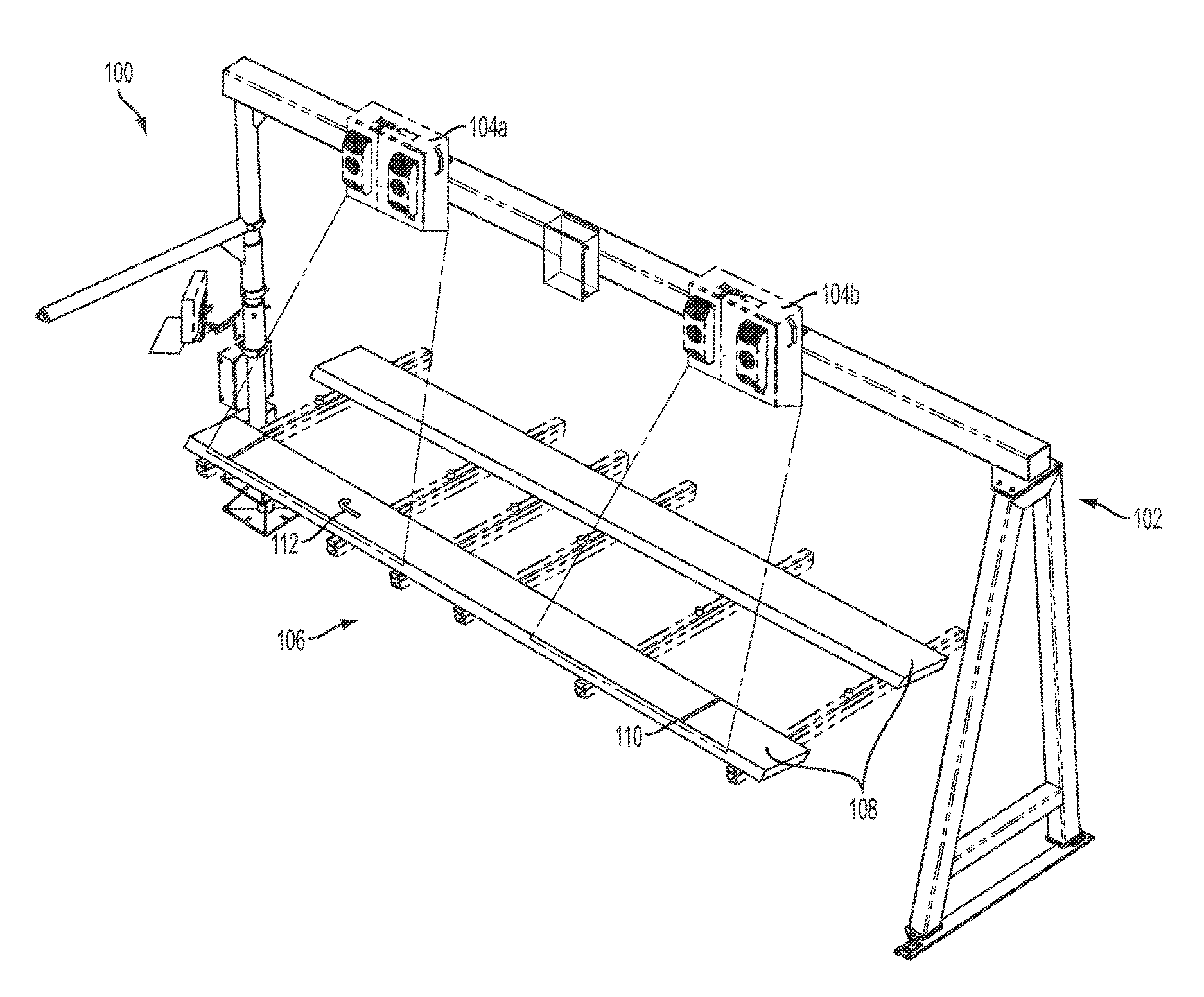

Embodiments provide grade annunciator systems that allow a lumber workpiece traveling in a workflow path to be to be labeled with a projected image that conveys information about the grade, a cut line, and/or the location of a defect in the workpiece. In some embodiments, the system includes a conveyor configured to convey lumber workpieces in a workflow path, and a projector or series of projectors configured to project an image or symbol onto a surface of the workpiece, wherein the image or symbol indicates grade, a cut line, and/or the location of a defect in the workpiece. Other embodiments are methods of labeling a lumber workpiece in a workflow path, the methods includes conveying the lumber workpiece along the workflow path, and projecting an image or symbol onto a surface of the workpiece as it is conveyed along the workflow path.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B27B Class
- 111 Applications Filed
- 101 Patents Issued To-Date
- 91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B27B Class
- 34.53 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
