Pixel electrode and liquid crystal display panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 21, 2015
filing date -
Aug 3, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

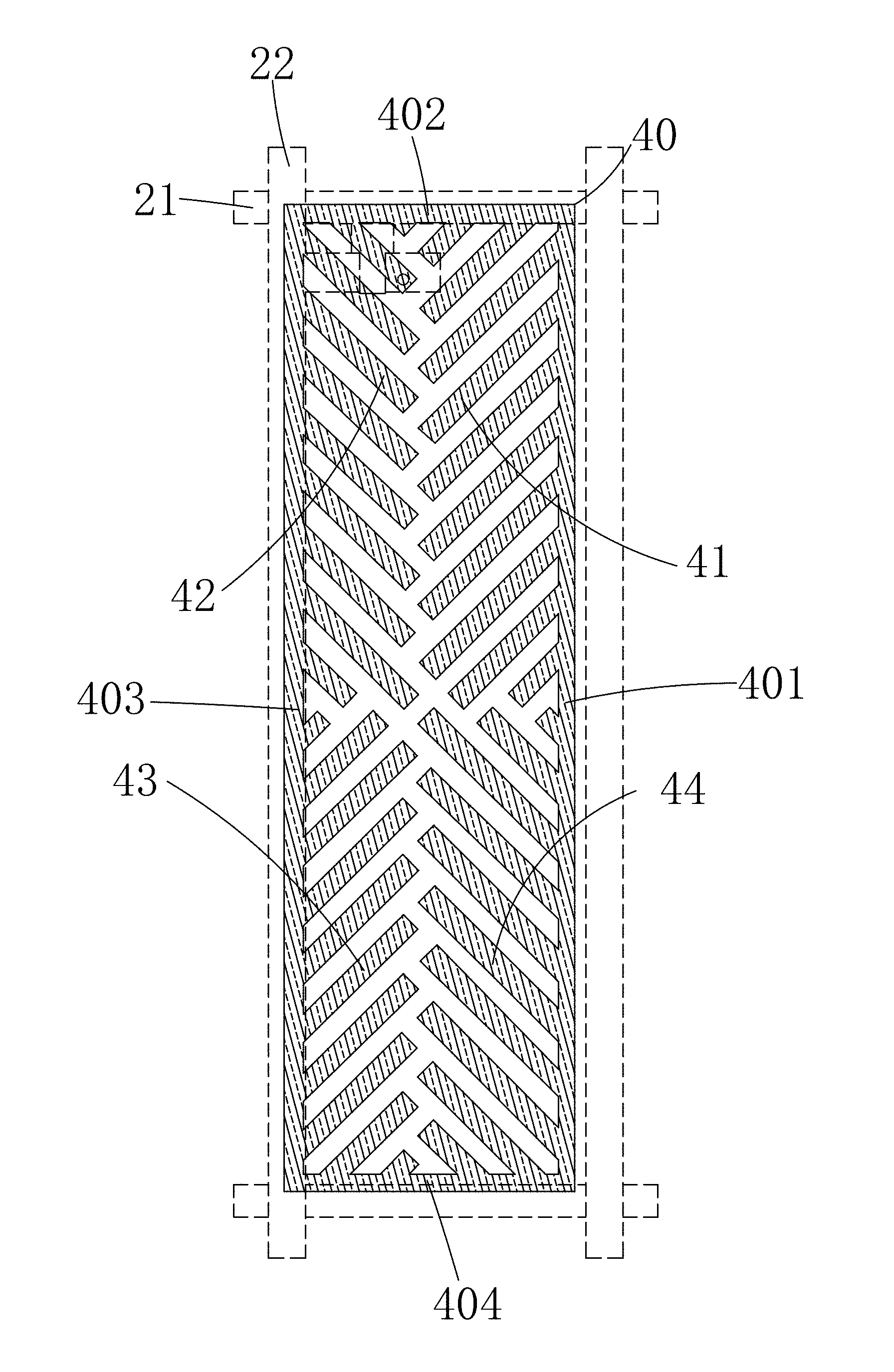

The invention provides a pixel electrode and a liquid crystal display panel. The pixel electrode does not contain a “cross-shaped” keel structure and specifically includes: a peripheral border (40), and multiple first, second, third and fourth pixel electrode branches (41, 42, 43, 44) being strip-shaped. The multiple first, second, third and fourth strip-shaped pixel electrode branches (41, 42, 43, 44) all are disposed in the interior of the peripheral border (40) and connected to the peripheral border (40) and further form an asymmetric structures, so that most of liquid crystal molecules located in the middle of the pixel electrode would be orientated along directions of spacings among the pixel electrode branches, the problem of low penetration rate of the liquid crystal display panel in the prior art caused by the “cross-shaped” keel structure of the pixel electrode can be solved and the transmittance can be increased.
