Liquid crystal display substrate and preparation method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jun 19, 2015
filing date -
Mar 17, 2015
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

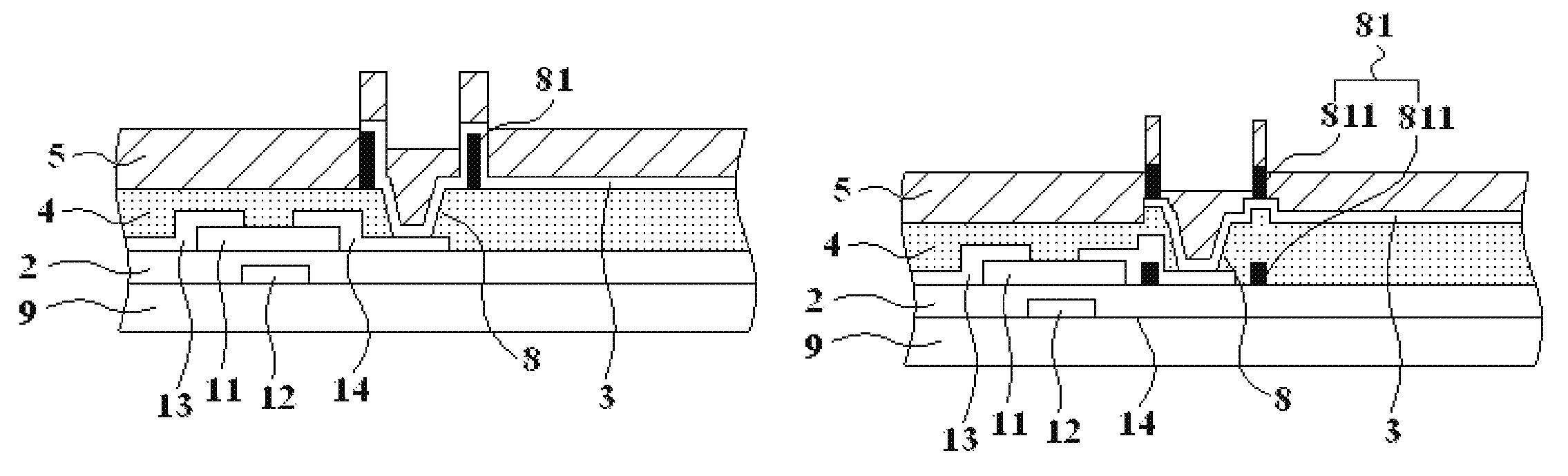

The present invention provides a liquid crystal display substrate and a preparation method thereof, which belongs to the technical field of liquid crystal display and may solve the problem that vias in the existing liquid crystal display substrate will result in non-uniform thickness of an alignment layer and thus influence the display effect. The liquid crystal display substrate provided by the present invention comprises a plurality of display structures, and an alignment layer located above all the display structures, wherein at least some of the display structures are provided therein with vias, and at least some of the vias are surrounded by baffle walls that are located under the alignment layer.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
