Camera lens system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 19, 2015
filing date -
Feb 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

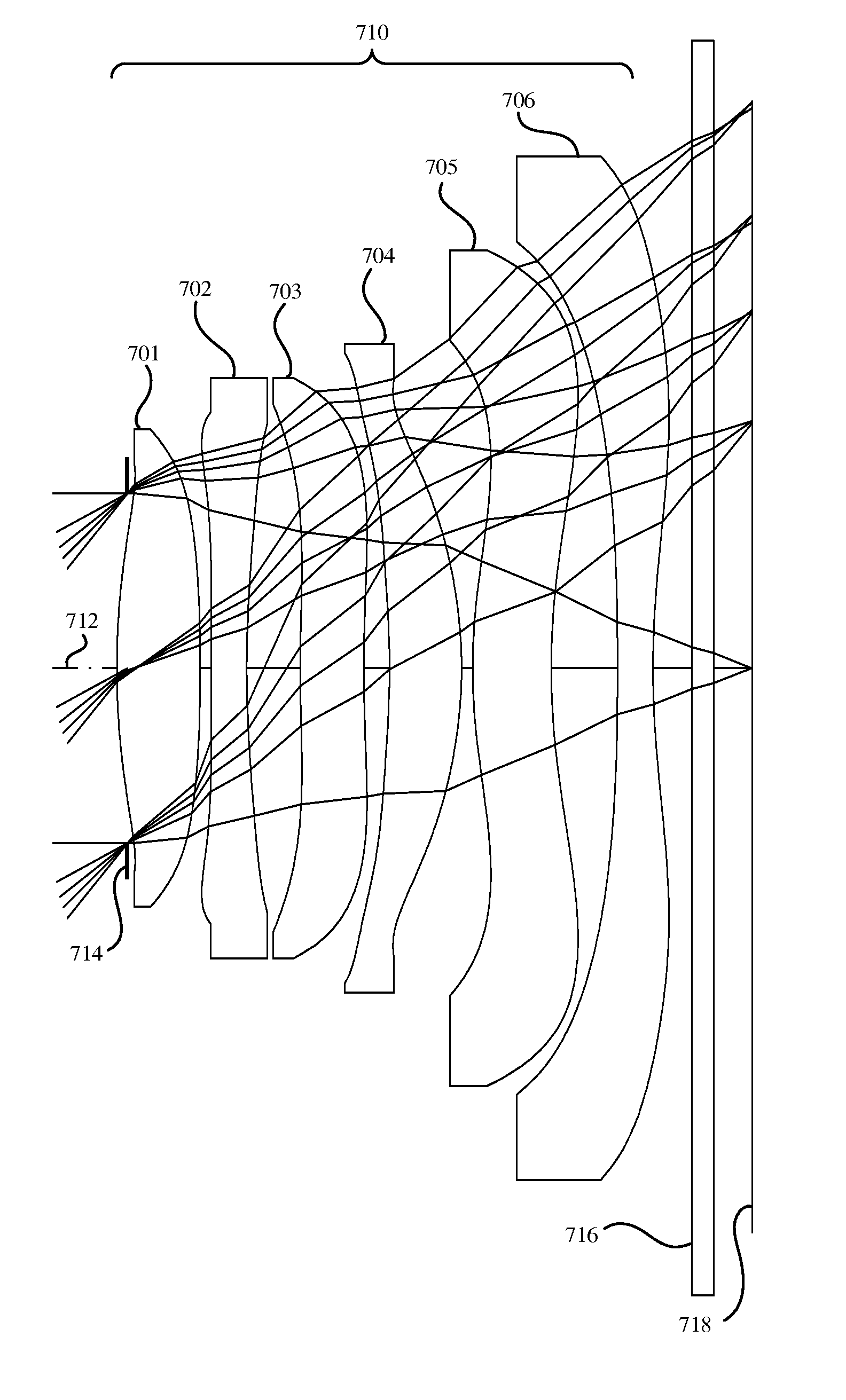

An optical imaging lens assembly that may have six lens components. The first, third, fourth, and fifth lens components may have positive refractive power. The second and sixth lens components may have negative refractive power. The lens assembly may satisfy the relation |f/f5|+|f/f6|<1.4, wherein f is a focal length of the optical imaging lens assembly, f5 is a focal length of the fifth lens component, f6 is a focal length of the sixth lens component. The lens assembly may also satisfy the further relation 0.8<|f/f5|+|f/f6|. The first lens component may include a wafer lens having a lens element molded on one or both surfaces of a planar substrate or two wafer lenses having a lens element molded on one surface of each of two planar substrates. The wafer lens may include an electrically controlled electrochromic surface having variable light transmittance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04N Class
- 17427 Applications Filed
- 14242 Patents Issued To-Date
- 81.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04N Class
- 27.70 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
