Optical fiber with macrobend loss mitigating layer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
May 27, 2016
filing date -
May 29, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

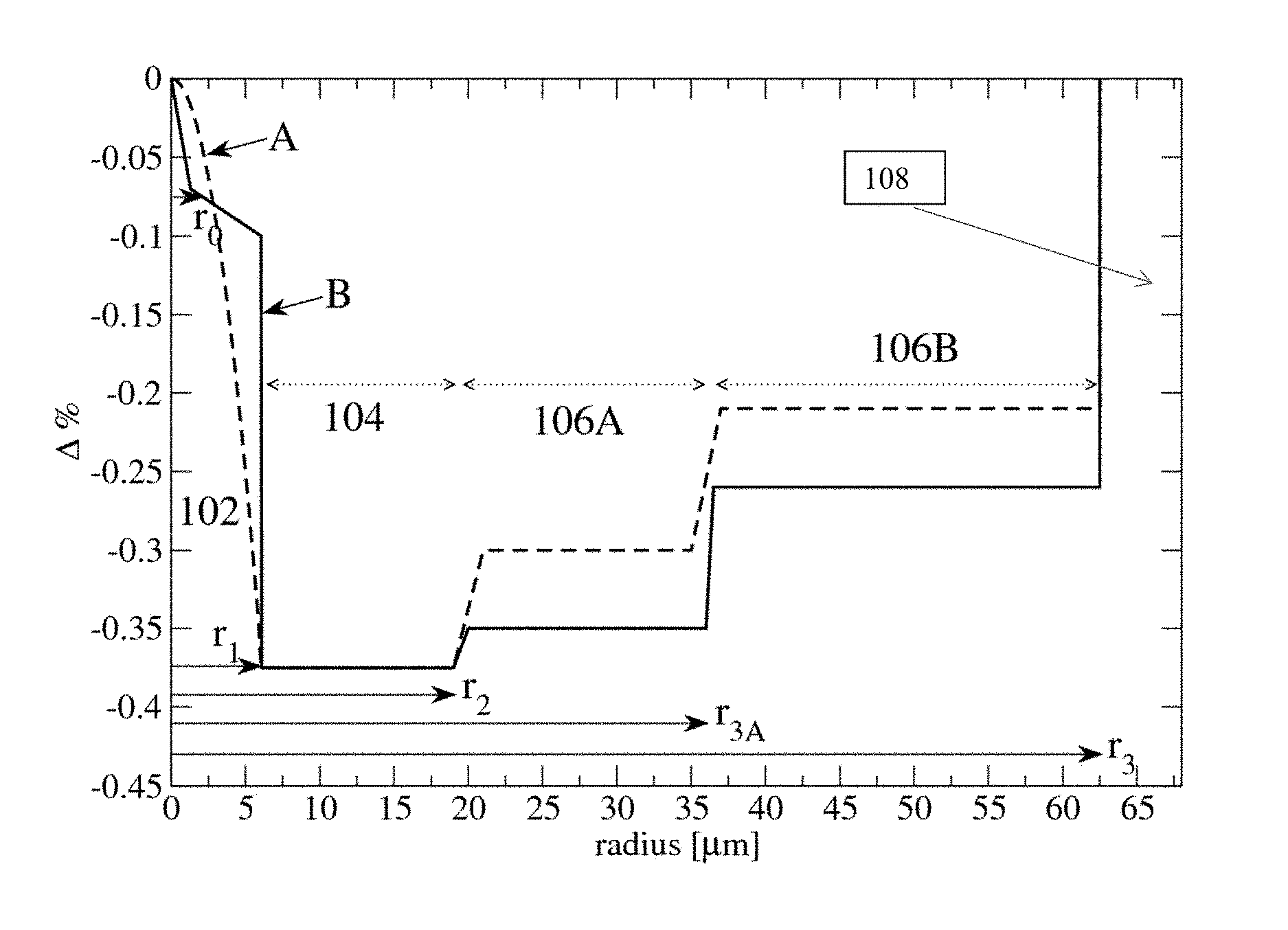

An optical fiber comprising: (i) a core comprising silica and having a maximum relative refractive index delta Δ1MAX; and LP01 effective area >100 μm2 at 1550 nm;
- (ii) an inner cladding surrounding the core and having a minimum relative refractive index delta Δ2MIN and ΔcoreMAX>Δ2MIN; (iii) an outer cladding surrounding the inner cladding and comprising a first outer cladding portion with a maximum refractive index Δ3A such that Δ3A>Δ2MIN; and another outer cladding portion surrounding the first outer cladding portion with a maximum refractive index delta Δ3B wherein with a maximum refractive index delta Δ3B wherein Δ3B>Δ3A, said another portion being the outermost portion of the outer cladding; and (iv) a coating layer surrounding the outer cladding, and in contact with said another outer cladding portion, the coating layer having a relative refractive index delta ΔC wherein ΔC>Δ3B.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- G02B Class
- 10130 Applications Filed
- 7990 Patents Issued To-Date
- 78.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02B Class
- 28.28 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
