Optical compensation film, method of manufacturing the same, and liquid crystal display provided with the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Feb 7, 2011
filing date -
Jun 24, 2010
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

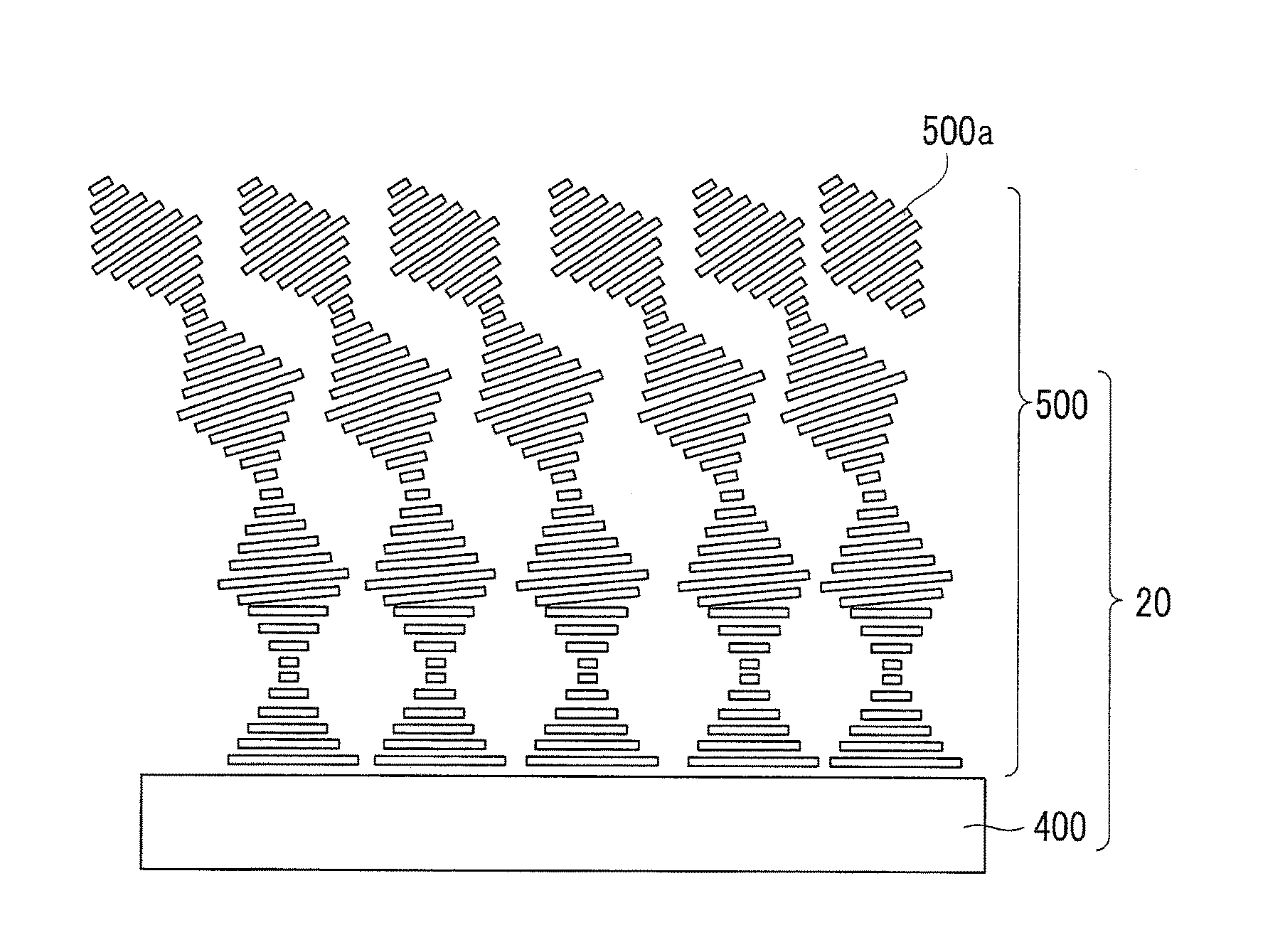

Disclosed is an optical compensation film including a supporter, and an optical compensation layer disposed on at least one surface of the supporter and including a polymer of cholesteric liquid crystal molecules having a structure in which a plurality of parallel-arranged liquid crystal molecules are helically arranged, wherein the cholesteric liquid crystal layer has a helical axis that is bent and tilted to the supporter at an angle represented by the following Equation 1; a method of manufacturing the same; and a liquid crystal device (LCD) including the optical compensation film.
In Equation 1, H is a tilt angle of the helical axis of a layer of the cholesteric liquid crystal molecules; θB is a tilt angle of liquid crystal molecule contact with the supporter; θT is a tilt angle of a liquid crystal molecule disposed at a part of the layer furthest from the supporter; d is a thickness of the layer; d′ is a distance from the supporter along a vertical direction; γ is a degree of variation in tilt angle of helical axis; and γ≧0.01.
First Claim
all claims..Other Claims data not available
