Tire suspension fusion system for estimation of tire deflection and tire load
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Mar 12, 2013
filing date -
Mar 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

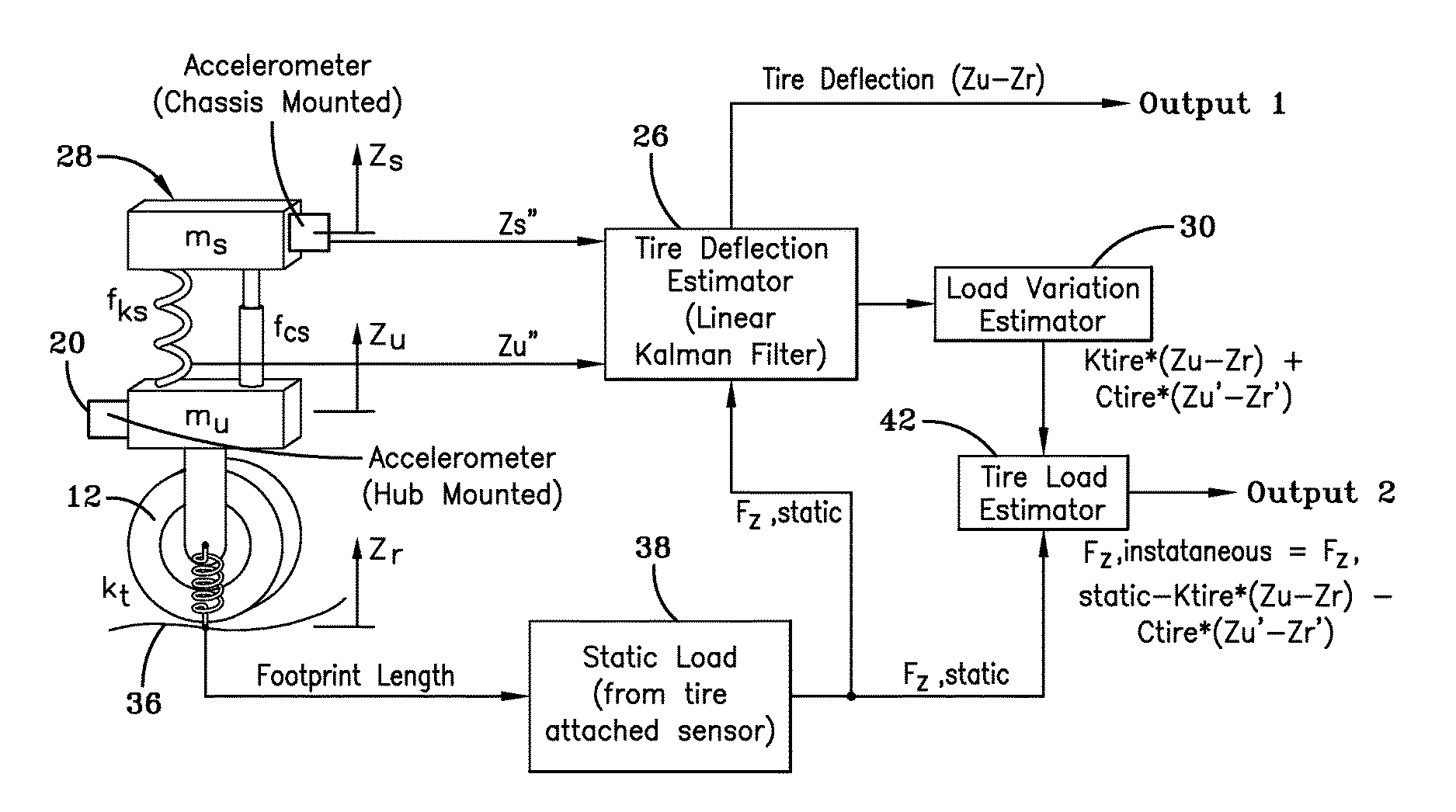

A system and method estimating a vehicle tire load includes a tire static load estimator estimating a static tire load using a tire attached TPMS sensor; a Kalman filter based tire deflection estimator estimating tire vertical deflection; a load variation estimator estimating the instantaneous load variation by using the tire vertical deflection information; and an output tire load estimator calculating an output load estimation mathematically by fusing the static tire load with the instantaneous load variation information. The tire deflection estimator includes a chassis accelerometer measuring a chassis vertical acceleration; and a hub accelerometer measuring a wheel hub vertical acceleration of the tire. A linear filter model receives as inputs the chassis vertical acceleration and the wheel hub vertical acceleration.
