Heat exchanger
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
May 8, 2013
filing date -
May 8, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

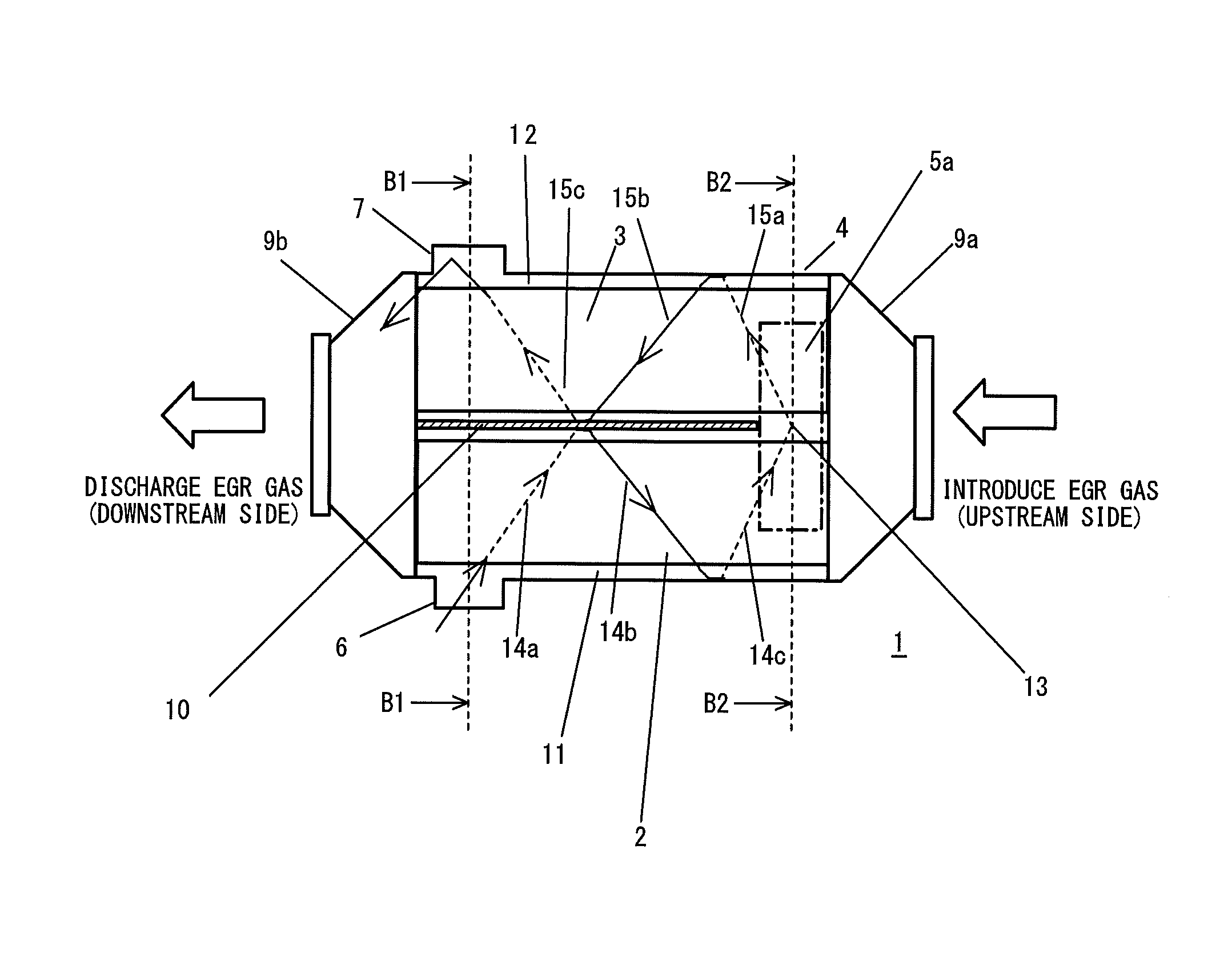

A heat exchanger includes: heat exchanger bodies arranged in parallel, each allowing a fluid to be cooled to flow therethrough in one direction; a housing that forms a coolant passage that allows a coolant to flow therethrough around each of the heat exchanger bodies; a coolant inlet portion and a coolant outlet portion located in a position corresponding to first ends of the heat exchanger bodies in a flow direction of the fluid to be cooled; a separating portion that separates the coolant passages in a position corresponding to second ends of the head exchanger bodies in the flow direction of the fluid to be cooled so that a communicating portion that allows the coolant passages to communicate with each other is left; and a flow passage area increasing portion that increases a flow passage area of the communicating portion. This structure achieves good cooling performance in the heat exchanger.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F02M Class
- 1202 Applications Filed
- 1045 Patents Issued To-Date
- 86.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
