Slide valve

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9874282
SERIAL NO

14896536

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

A slide valve is described, in particular, for an automatic transmission for motor vehicles. The slide valve includes a valve slide displaceable in a sliding channel and at least two adjacent connecting channels. The sliding channel and the valve slide are configured so that the valve slide in an opened slide position establishes a fluid connection between the two adjacent connecting channels, and the valve slide in the opened slide position is guided in a section of the sliding channel between the adjacent connecting channels.

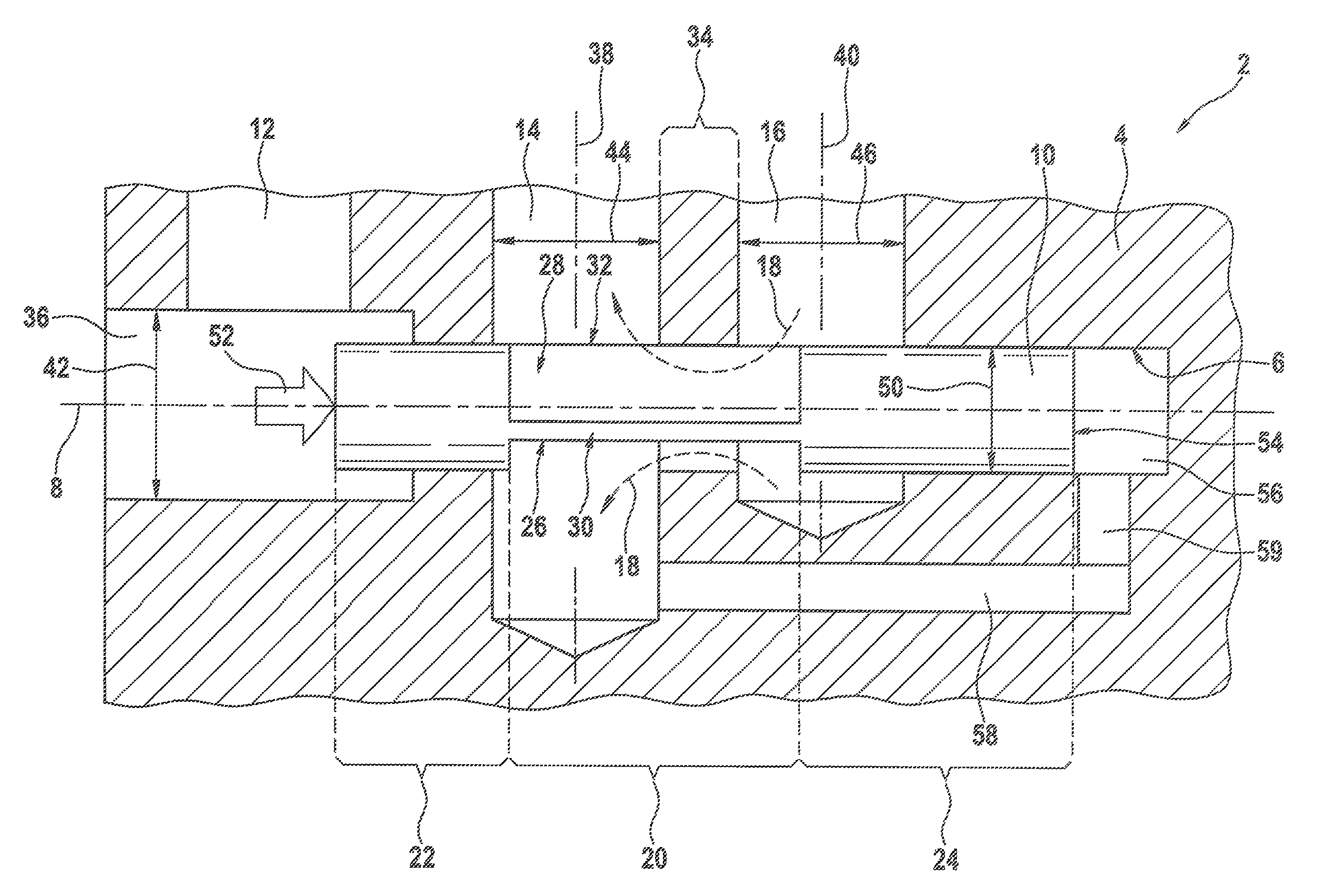

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
ROBERT BOSCH GMBHPOSTFACH 30 02 20 STUTTGART 70442

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Escher, Guenter Oberstdorf, DE 10 34
Wetzel, Gerhard Korntal-Muenchingen, DE 37 361

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Jul 23, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Jul 23, 2029
Fee Large entity fee small entity fee micro entity fee
Surcharge - 7.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge - 11.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge after expiration - Late payment is unavoidable $700.00 $350.00 $175.00
Surcharge after expiration - Late payment is unintentional $1,640.00 $820.00 $410.00
