Transmission system of vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 24, 2015
filing date -
Sep 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

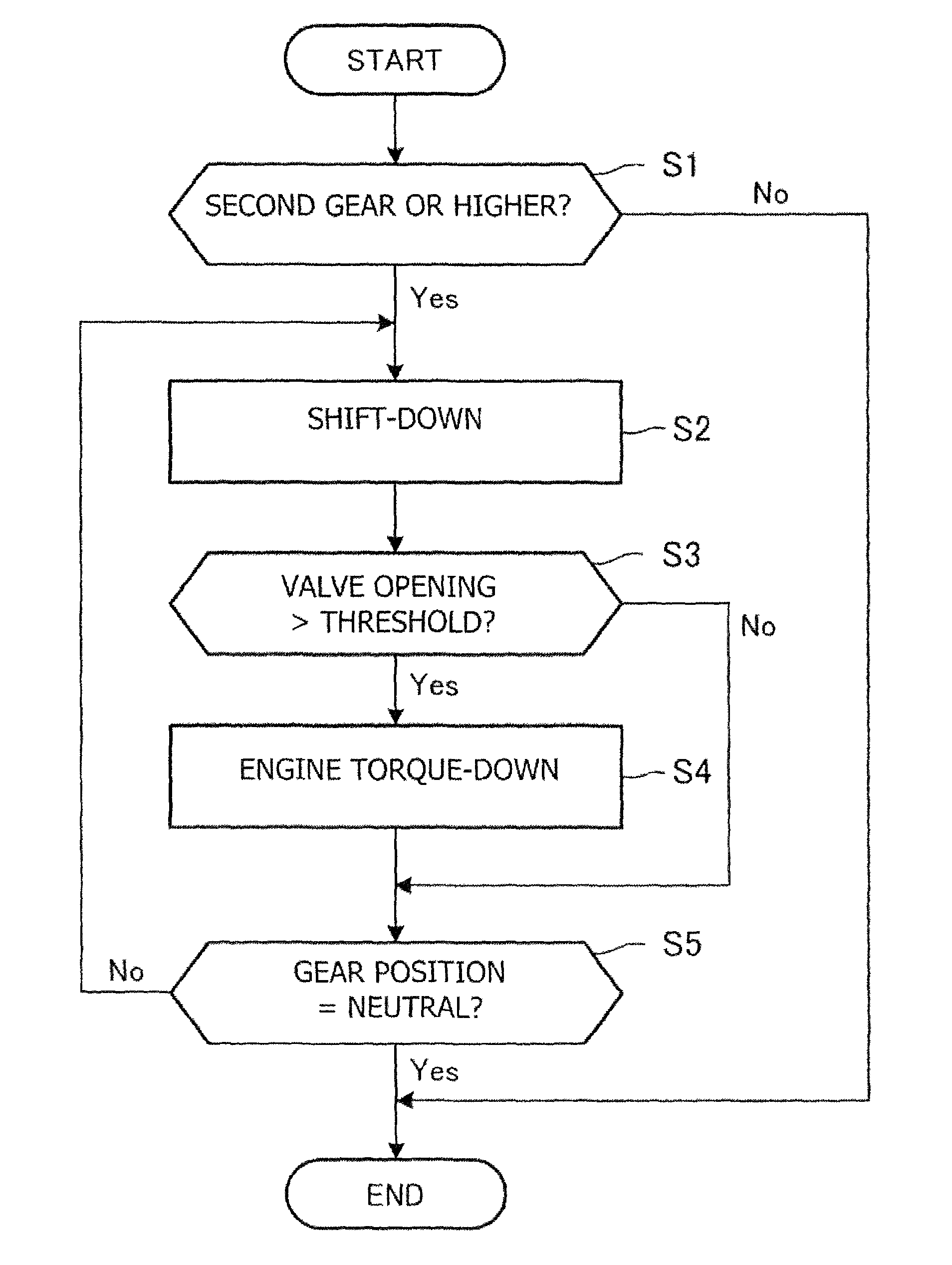

A transmission system of a vehicle includes a starting clutch, a change clutch, a stepped transmission, a single spindle, a gear position sensor, an actuator, and a transmission controller. The change clutch and the stepped transmission are operated via the single spindle. The gear position sensor is to detect a shift stage of the stepped transmission. The actuator is to rotate the single spindle. The transmission controller, in a case where an engine is started in a state in which the shift stage of the stepped transmission is set in second gear or higher, is configured to control the actuator to carry out shift-down operation and configured to limit output of the engine so that an engine rotation speed becomes a value smaller than a predetermined value until the shift stage of the stepped transmission is set in neutral or first gear.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16H Class
- 2867 Applications Filed
- 2383 Patents Issued To-Date
- 83.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16H Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
