Vacuum device for collecting light and heavy material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Grant Date -
Oct 13, 2016
app pub date -
Apr 7, 2016
filing date -
Apr 13, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

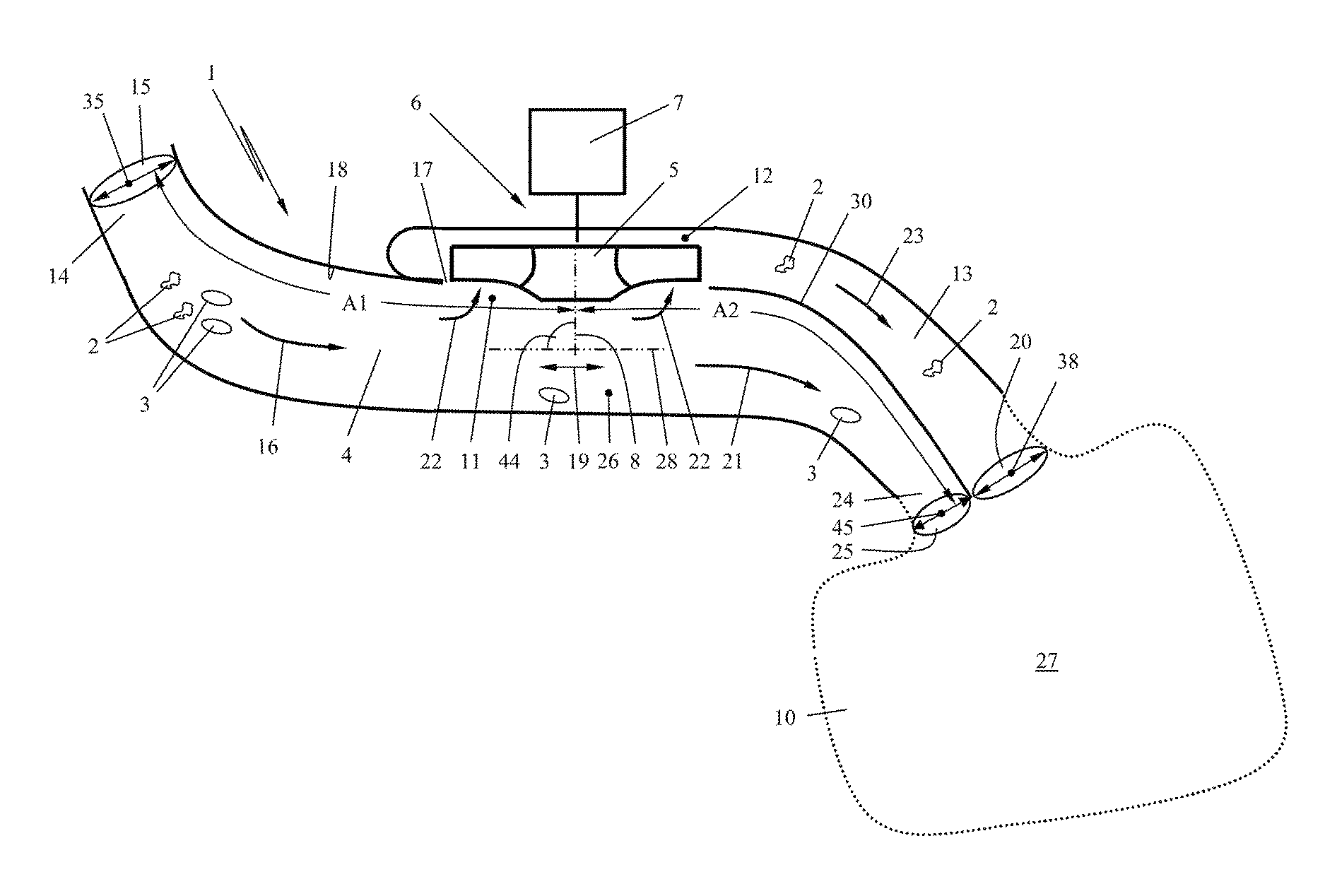

A vacuum device has a motor-driven blower wheel with suction side and with pressure side with pressure channel and blow-out opening. An intake pipe at the suction side has an intake opening and a discharge opening at opposed ends. The intake pipe conveys a suction airflow entraining first and second collected materials. Through the discharge opening the first collected material is discharged from the intake pipe. A blower inlet opening is formed in a wall of the intake pipe. Blower inlet opening, blower wheel, and pressure channel are configured such that second collected material passes through blower inlet opening and blower wheel into the pressure channel for discharge through blow-out opening. The blower inlet opening, in longitudinal direction of the intake pipe, is positioned between discharge opening and intake opening at a first spacing to the intake opening and at a second spacing to the discharge opening.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- A47L Class
- 1110 Applications Filed
- 835 Patents Issued To-Date
- 75.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A47L Class
- 32.69 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
