Exhaust outlet elbow bolt pattern
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Dec 23, 2014
filing date -
Dec 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

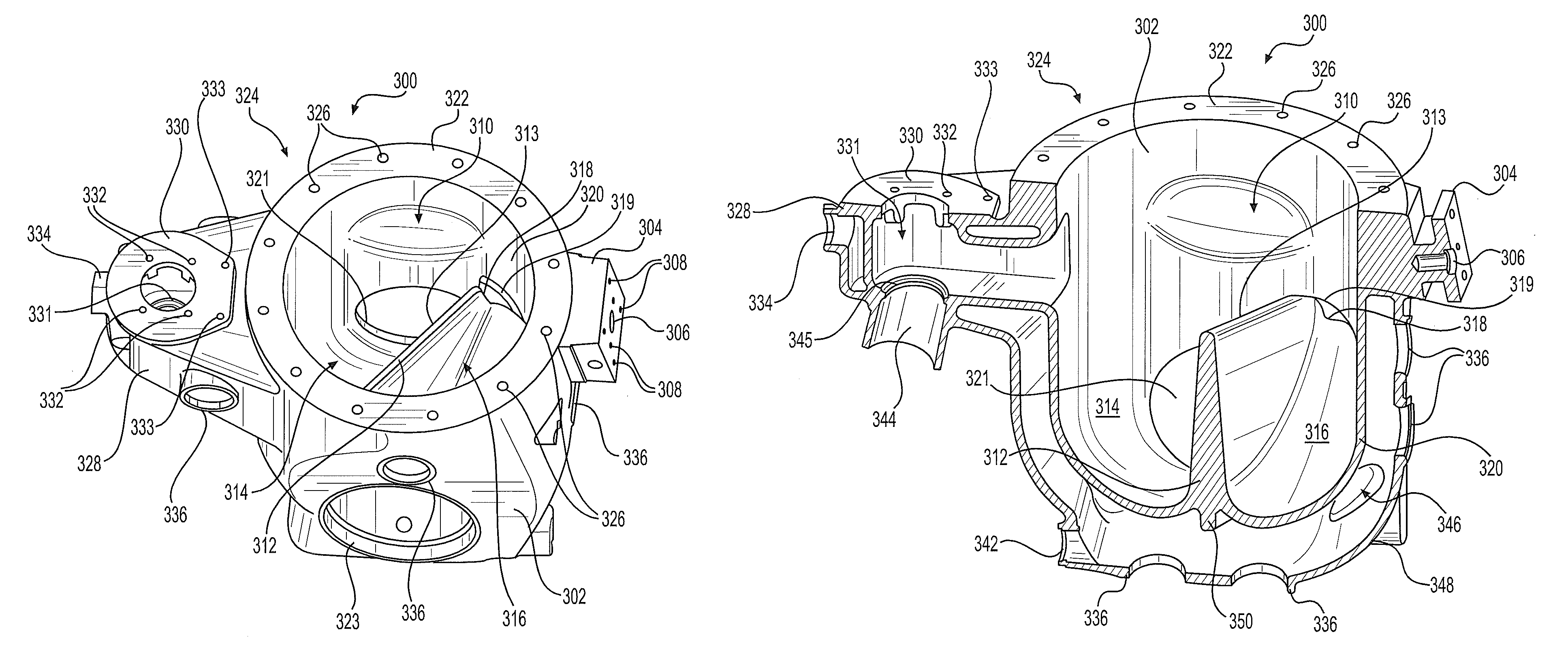

An exhaust outlet elbow includes: a body having an outer wall and an interior wall, the interior wall defining, at least in part, an interior chamber; a connecting surface located above the interior chamber; and an array of threaded holes located about the connecting surface, wherein the threaded holes terminate in the body. A method of manufacturing an exhaust outlet elbow includes the steps of: forming a body having an outer wall and an interior wall, the interior wall defining, at least in part an interior chamber; forming an connecting surface located between the interior and outer walls; and forming an array of threaded holes in the connecting surface.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
