Information-display-equipped electric-heating-type heater and method of using information therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 23, 2014
filing date -
Mar 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

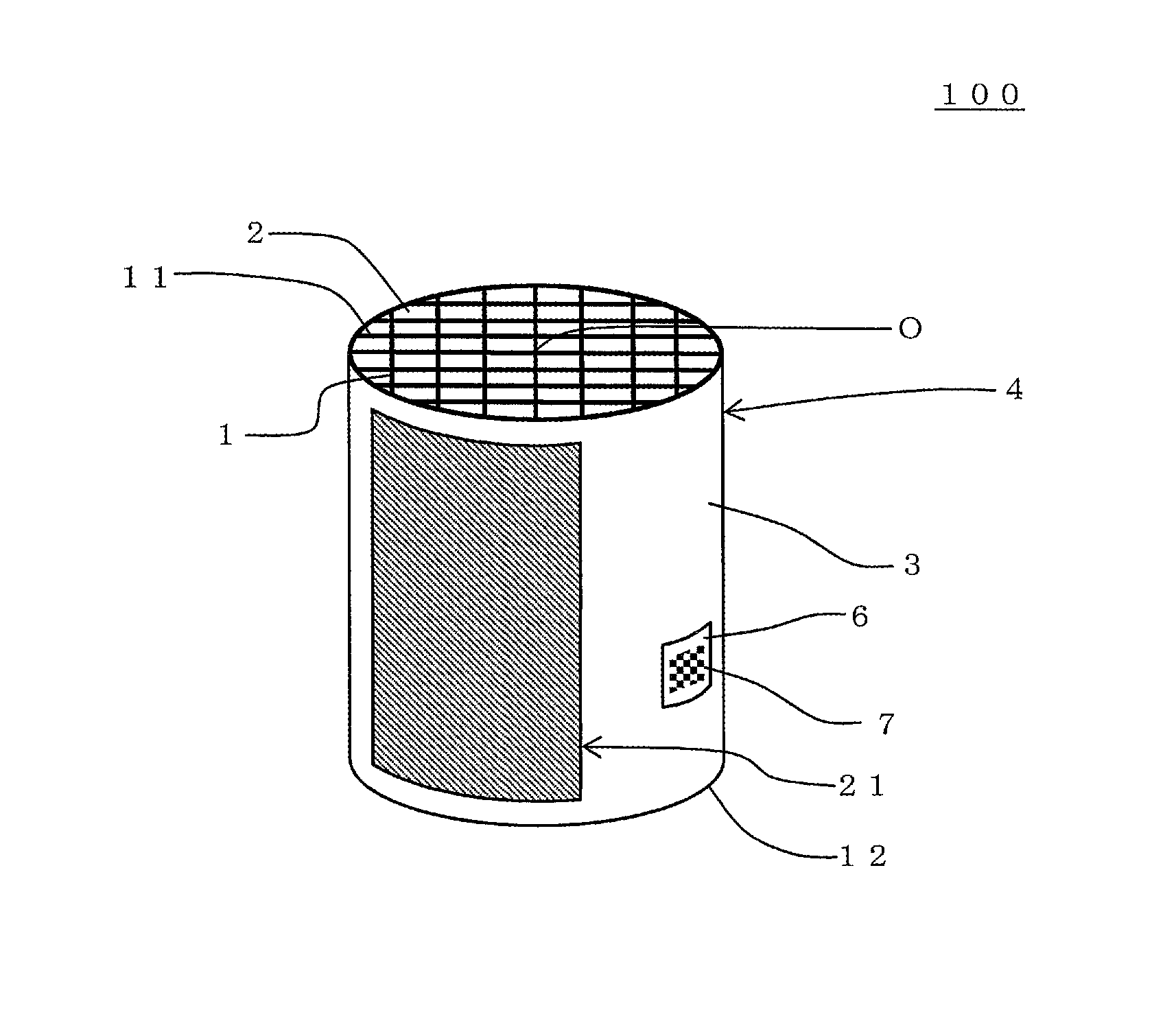

There are disclosed an information-display-equipped electric-heating-type heater, and a method of using the above information. An information-display-equipped electric-heating-type heater includes a tubular honeycomb structure made of a conductive material and having porous partition walls to define and form a plurality of cells which become through channels for a fluid and extend from one end face to the other end face, and a circumferential wall positioned in an outermost circumference; and a pair of electrodes disposed on the circumferential wall of the honeycomb structure, and information concerning a heater performance of the electric-heating-type heater is displayed in the honeycomb structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H05B Class
- 2884 Applications Filed
- 2414 Patents Issued To-Date
- 83.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
