Multi-position camshaft phaser with two one-way wedge clutches
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Apr 30, 2015
filing date -
Apr 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

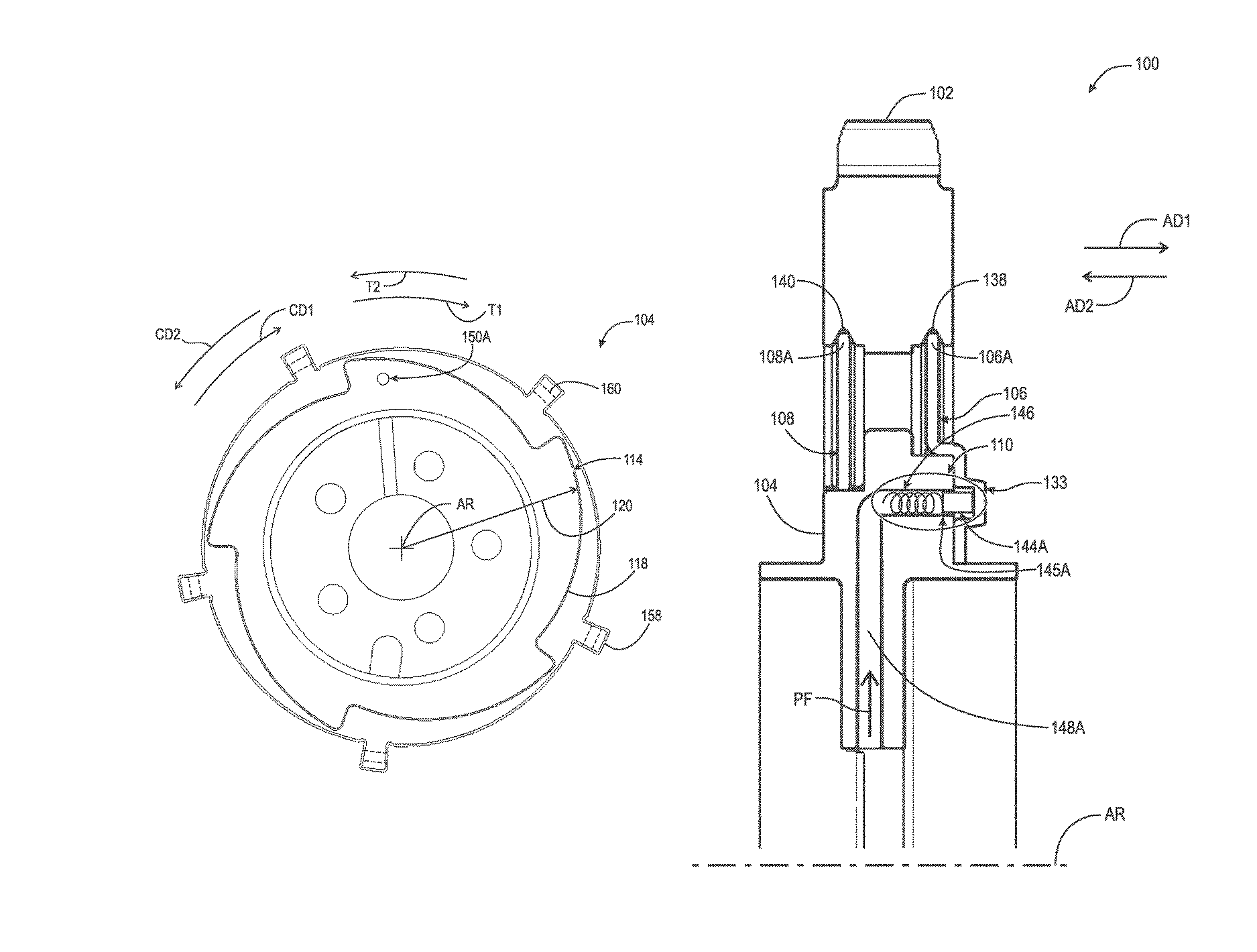

A camshaft phaser, including: a stator; a rotor including a first channel and a second channel and connectable to a camshaft a first wedge plate and a second wedge plate; and a displacement assembly including a first pin in the first channel and a second pin in the second channel. For an advance mode: fluid displaces the first pin to displace the first wedge plate to enable rotation of the rotor, with respect to the stator, in a first direction; and the second wedge plate blocks rotation of the rotor, with respect to the stator, in a second direction. For a retard mode: fluid displaces the second pin to displace the second wedge plate to enable rotation of the rotor, with respect to the stator, in a second direction; and the first wedge plate blocks rotation of the rotor, with respect to the stator, in the first direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F01L Class
- 509 Applications Filed
- 455 Patents Issued To-Date
- 89.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
