Heat engine system having a selectively configurable working fluid circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 3, 2014
filing date -
Sep 5, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

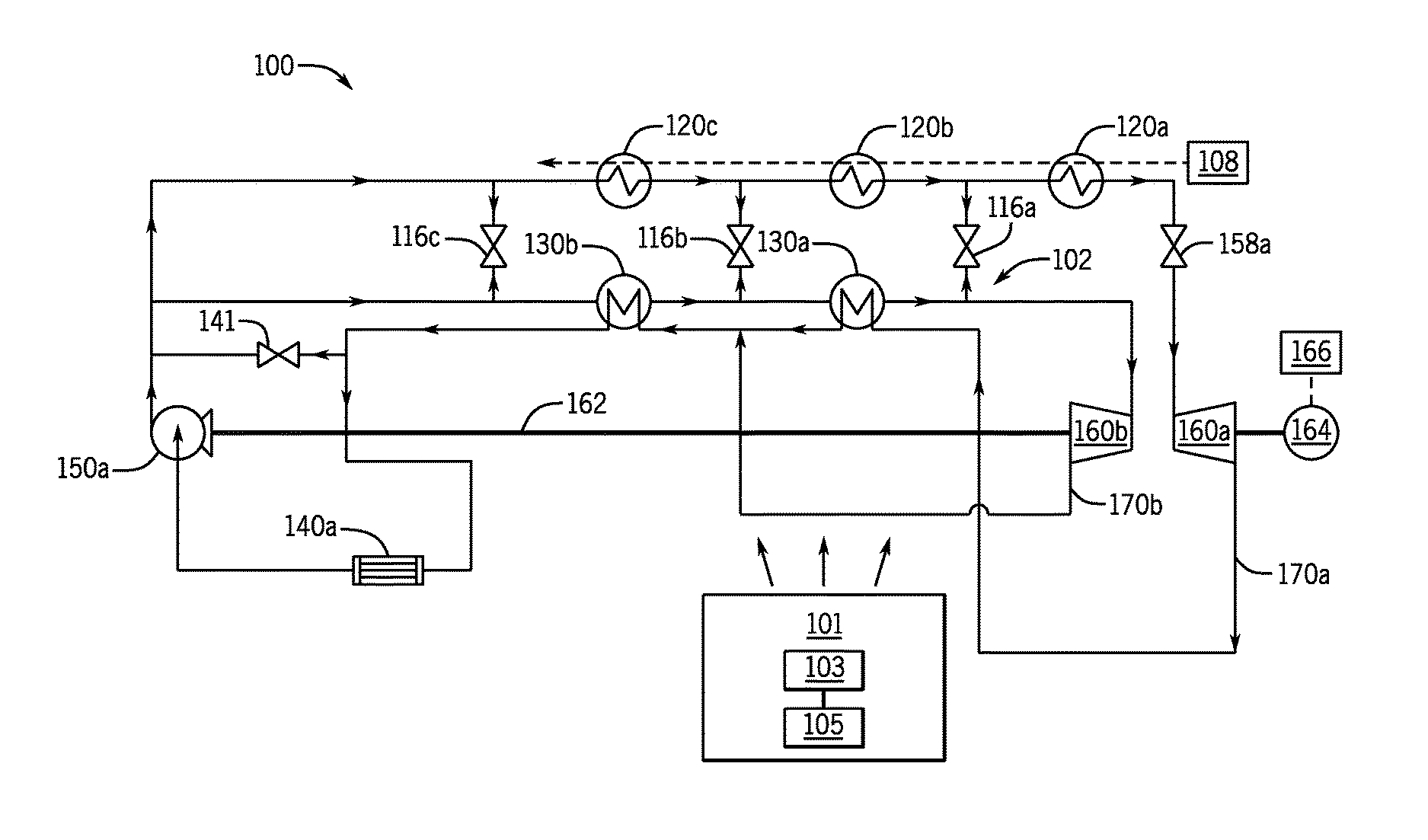

Heat engine systems having selectively configurable working fluid circuits are provided. One heat engine system includes a pump that circulates a working fluid through a working fluid circuit and an expander that receives the working fluid from a high pressure side of the working fluid circuit and converts a pressure drop in the working fluid to mechanical energy. A plurality of waste heat exchangers are each selectively positioned in or isolated from the high pressure side. A plurality of recuperators are each selectively positioned in or isolated from the high pressure side and the low pressure side. A plurality of valves are actuated to enable selective control over which of the plurality of waste heat exchangers is positioned in the high pressure side, which of the plurality of recuperators is positioned in the high pressure side, and which of the plurality of recuperators is positioned in the low pressure side.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F01K Class
- 326 Applications Filed
- 260 Patents Issued To-Date
- 79.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 64 Citation Count
- F01K Class
- 98.63 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
