Platform with curved edges
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Feb 12, 2013
filing date -
Dec 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

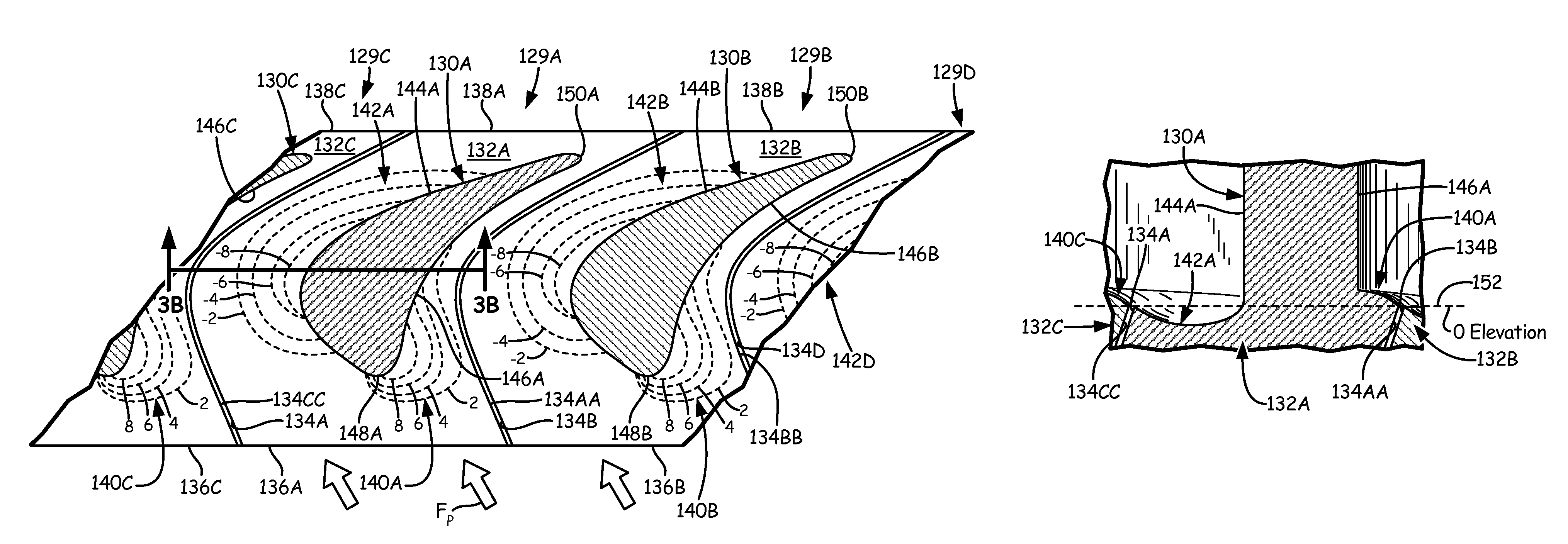

A gas turbine engine component includes an airfoil and a platform. The airfoil has a pressure side and an opposite suction side. The platform is connected to the airfoil and has a first curved edge to the suction side of the airfoil and a second curved edge to the pressure side of the airfoil. The first and second curved edges extend along a surface of the platform having a neutral elevation with respect to a reference axisymmetrical platform surface for the gas turbine engine.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2013 Application Filing Year
- F01D Class
- 1696 Applications Filed
- 1490 Patents Issued To-Date
- 87.86 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- F01D Class
- 31.14 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
