Method for stitching vehicle interior components and components formed from the method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jan 31, 2014
filing date -
Jul 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance

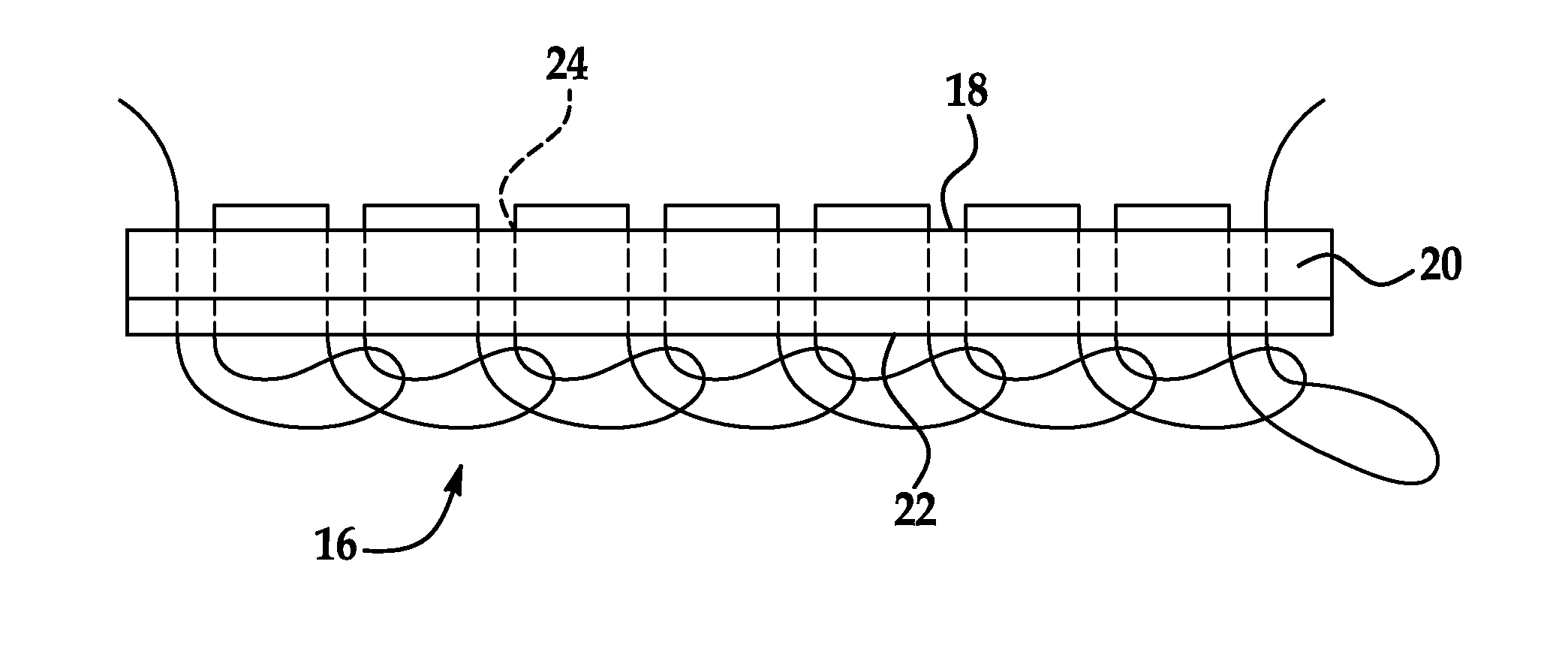

Abstract
A method of applying stitching to an interior component is provided herein. The method including the steps of: a) penetrating the outer skin layer, the substrate layer and the intermediary layer with an awl to form a piercing therethrough; b) retracting the awl from the outer skin layer, the substrate layer and the intermediary layer; c) inserting a needle through the piercing through the substrate layer, the intermediary layer and the outer skin layer to grasp a thread positioned on the outer skin layer; d) pulling the thread through the outer skin layer, the intermediary layer and the substrate layer; e) looping the thread with a previous stitch passed through the outer skin layer, the intermediary layer and the substrate layer; f) advancing the interior component to another position, wherein a backside of the substrate layer is free of obstructions; and g) repeating steps a-f until a predetermined amount of stitches are applied to the interior component.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- D05C Class
- 47 Applications Filed
- 38 Patents Issued To-Date
- 80.86 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D05C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
