Depositing calcium fluoride template layers for solar cells
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Dec 15, 2014
filing date -
Apr 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

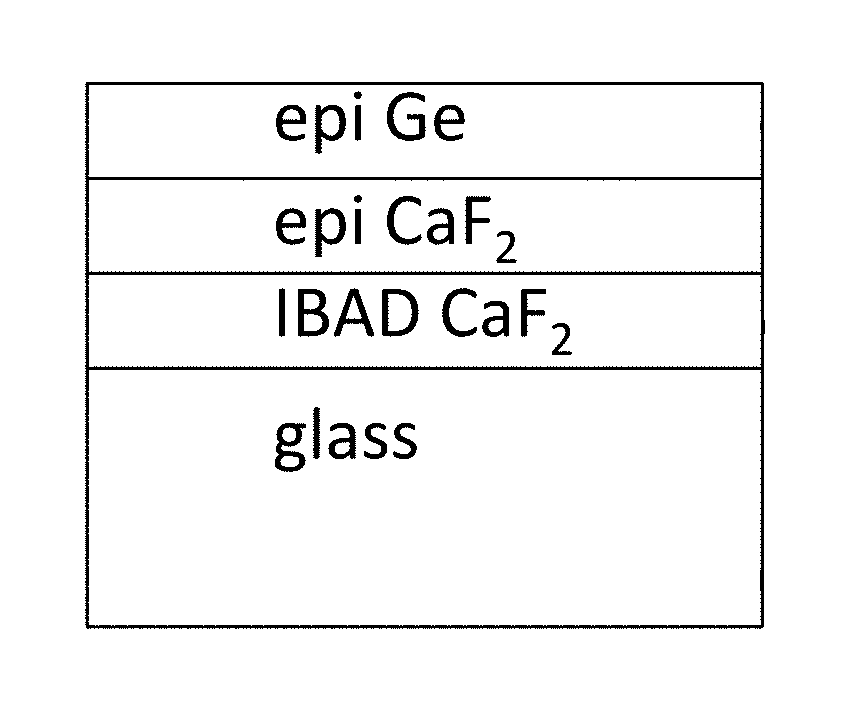

A biaxially textured crystalline layer formed on a substrate using ion beam assisted deposition (IBAD) is provided. The biaxially textured crystalline layer includes an oriented CaF2 crystalline layer having crystalline grains oriented in both in-plane and out-of-plane directions, where the out-of-plane orientation is a (111) out-of-plane orientation. The oriented CaF2 crystalline layer is disposed for growth of a subsequent epitaxial layer and the CaF2 crystalline layer is an IBAD CaF2 layer. The biaxially textured CaF2 layer can be used in a photovoltaic cell, an electronic or optoelectronic device, an integrated circuit, an optical sensor, or a magnetic device.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | A1 | US20120288673 | Apr 09, 2012 |
International Classification(s)
- 2014 Application Filing Year
- C23C Class
- 2649 Applications Filed
- 2034 Patents Issued To-Date
- 76.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C23C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
