System and process for biomass conversion to renewable fuels with byproducts recycled to gasifier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Nov 19, 2012
filing date -
Nov 22, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

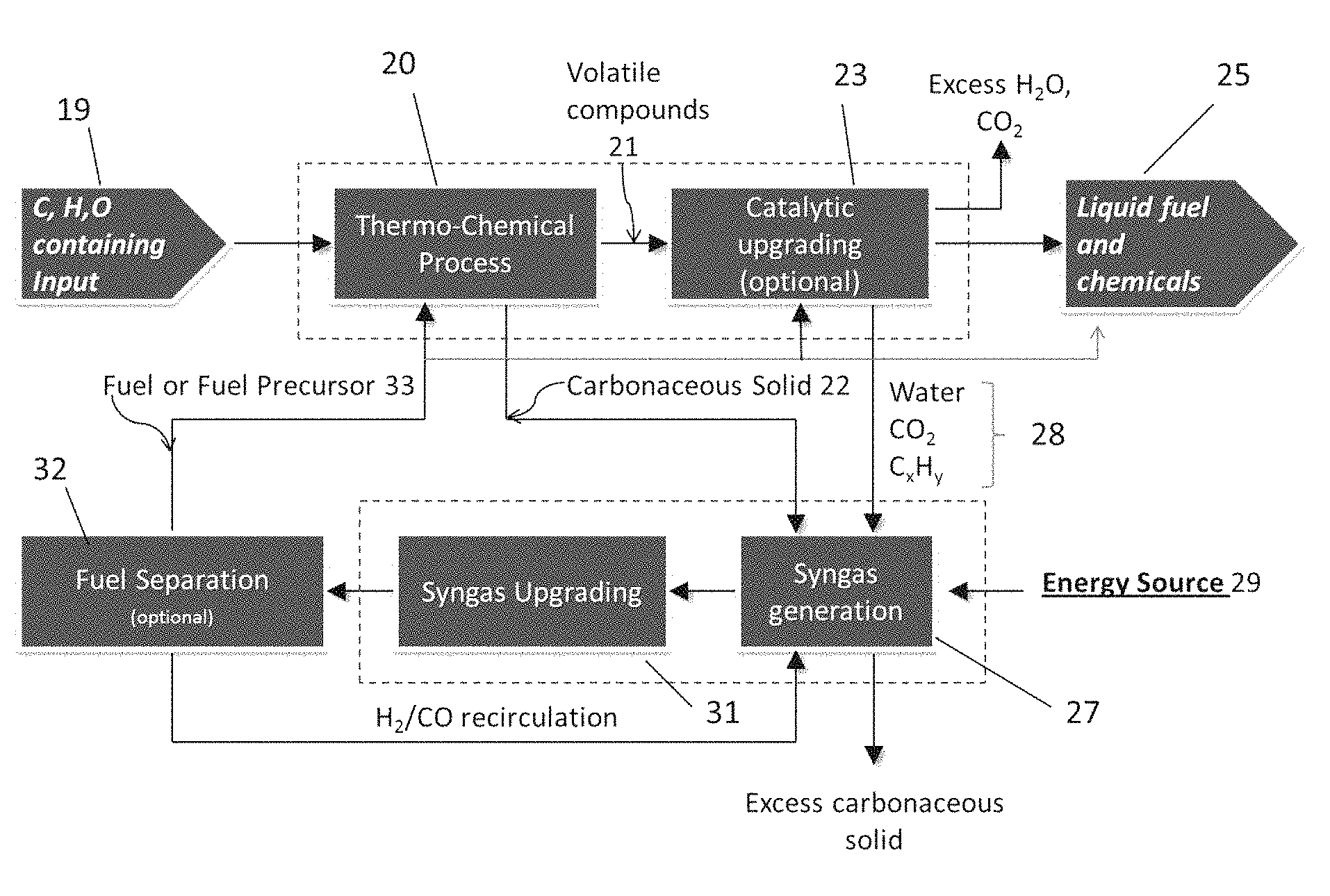

This invention relates generally to a method and system for improving the conversion of carbon-containing feed stocks to renewable fuels, and more particularly to a thermal chemical conversion of biomass to renewable fuels and other useful chemical compounds, including gasoline and diesel, via a unique combination of unique processes. More particularly, this combination of processes includes (a) a selective pyrolysis of biomass, which produces volatile hydrocarbons and a biochar; (b) the volatile hydrocarbons are upgraded in a novel catalytic process to renewable fuels, (c) the biochar is gasified at low pressure with recycled residual gases from the catalytic process to produce synthesis gas, (d) the synthesis gas is converted to dimethyl ether in a novel catalytic process, and (e) the dimethyl ether is recycled to the selective pyrolysis process.
First Claim
Other Claims data not available
Family
International Classification(s)
- C10L:FUELS NOT OTHERWISE PROVIDED FOR; NATURAL GAS; SYN....
- C07C:ACYCLIC OR CARBOCYCLIC COMPOUNDS
- C10J:PRODUCTION OF PRODUCER GAS, WATER-GAS, SYNTHESIS G....
- B01J:CHEMICAL OR PHYSICAL PROCESSES, e.g. CATALYSIS, CO....
- C10G:CRACKING HYDROCARBON OILS; PRODUCTION OF LIQUID HY....
- C10B:DESTRUCTIVE DISTILLATION OF CARBONACEOUS MATERIALS....
- 2012 Application Filing Year
- C10L Class
- 423 Applications Filed
- 359 Patents Issued To-Date
- 84.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C10L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
