Proppant for fracking fluid
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Grant Date -
Oct 29, 2015
app pub date -
Apr 21, 2015
filing date -
Apr 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

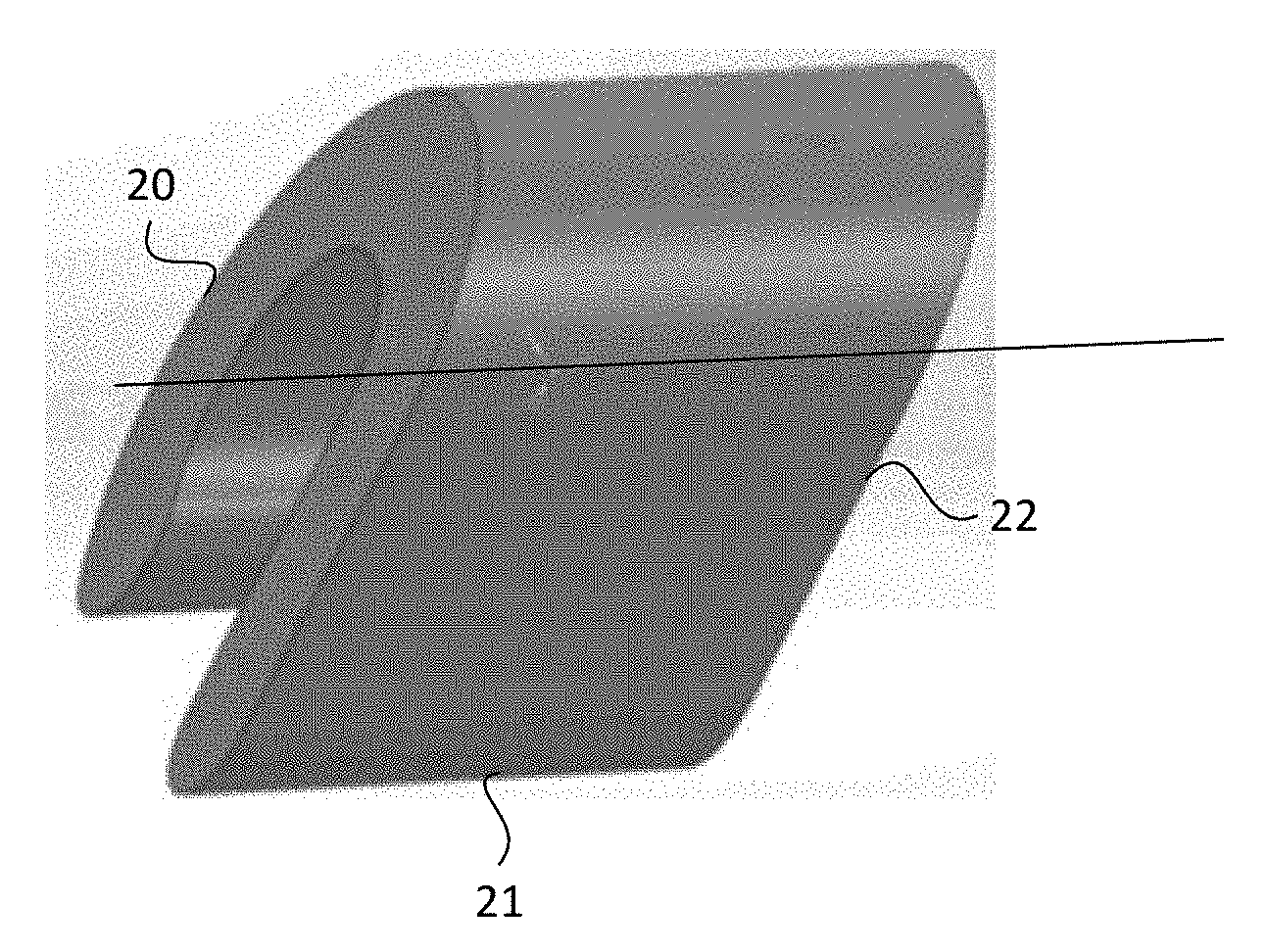

This invention is a fracturing component and method having a fluid and a plurality of three dimensional structures mixed in the fluid wherein each structure has a longitudinal axis, center of mass and center of pressure wherein the center of mass and the center of pressure do not align in a stable manner causing the structure to flutter in the fluid to reduce the structure from settling out of the fluid when injected into a fissure. Each three dimensional structure can include a first end of the structure having a first plane having an angle of incident θ1 offset from perpendicular to the longitudinal axis and a second end of the structure having a second plane having an angle of incident θ2 offset from perpendicular to the longitudinal axis. The difference between θ1 and θ2 can be in a range of 0° to 65°.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- C09K Class
- 2848 Applications Filed
- 2073 Patents Issued To-Date
- 72.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C09K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
