Multiple bonding in wafer level packaging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jun 27, 2013
filing date -
Sep 28, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

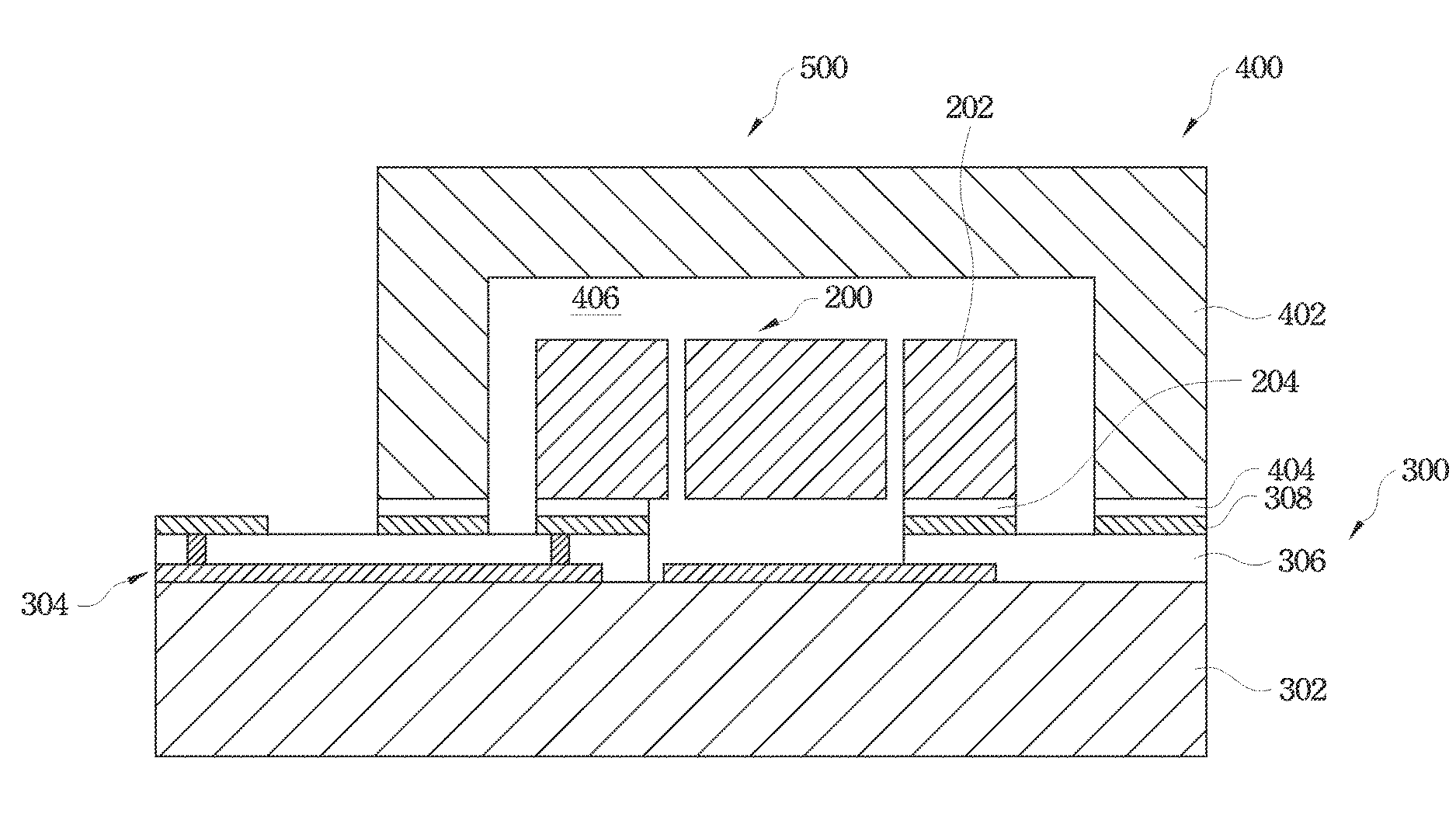

A MEMS device is described. The device includes a micro-electro-mechanical systems (MEMS) substrate including a first bonding layer, a semiconductor substrate including a second bonding layer, and a cap including a third bonding layer, the cap coupled to the semiconductor substrate by bonding the second bonding layer to the third bonding layer. The first bonding layer includes silicon, the semiconductor substrate is electrically coupled to the MEMS substrate by bonding the first bonding layer to the second bonding layer, and the MEMS substrate is hermetically sealed between the cap and the semiconductor substrate.
