Image reading apparatus having first motor for rotating feed roller, and second motor for rotating conveyance roller and reverse roller
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 9, 2016
filing date -
Aug 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

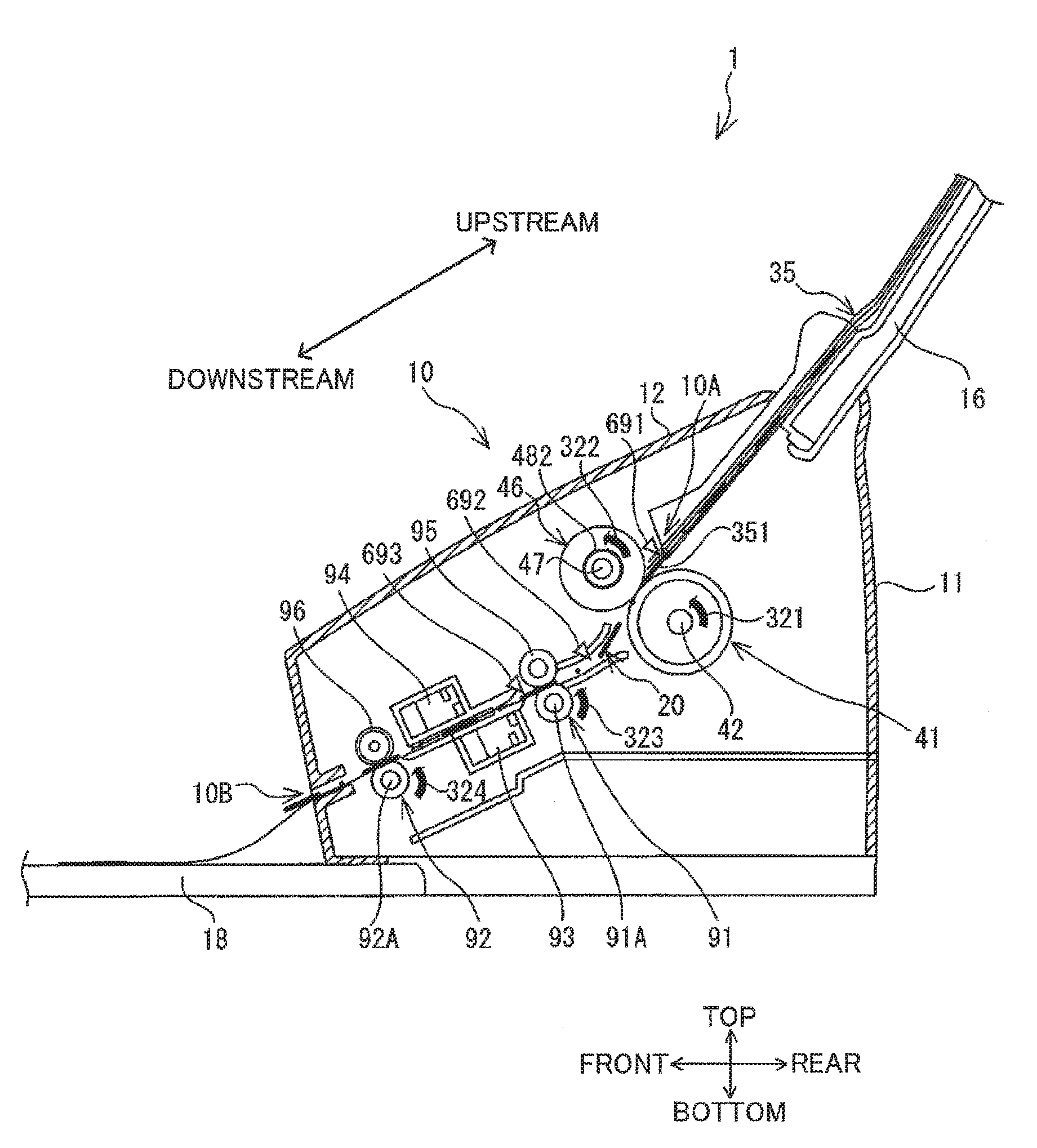

In an image reading apparatus, in a first process, first and second motor rotate feed and conveyance rollers with circumferential speeds of first and second speeds, respectively. In the first process, the reverse roller has a first separation performance for separating a sheet from another sheet. In a second process, after a detector detects a leading edge of the sheet, the controller stops the first motor, and decelerates the second motor, and the reverse roller has a second separation performance lower than the first separation performance. In a third process, after a trailing edge of the sheet reaches a specific position, the first motor starts rotating the feed roller with the circumferential speed of the first speed. In a fourth process, after the trailing edge of the sheet passes through a reading end position, the controller accelerates the second motor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
