Vehicle skeleton structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Mar 23, 2016
filing date -
Jul 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

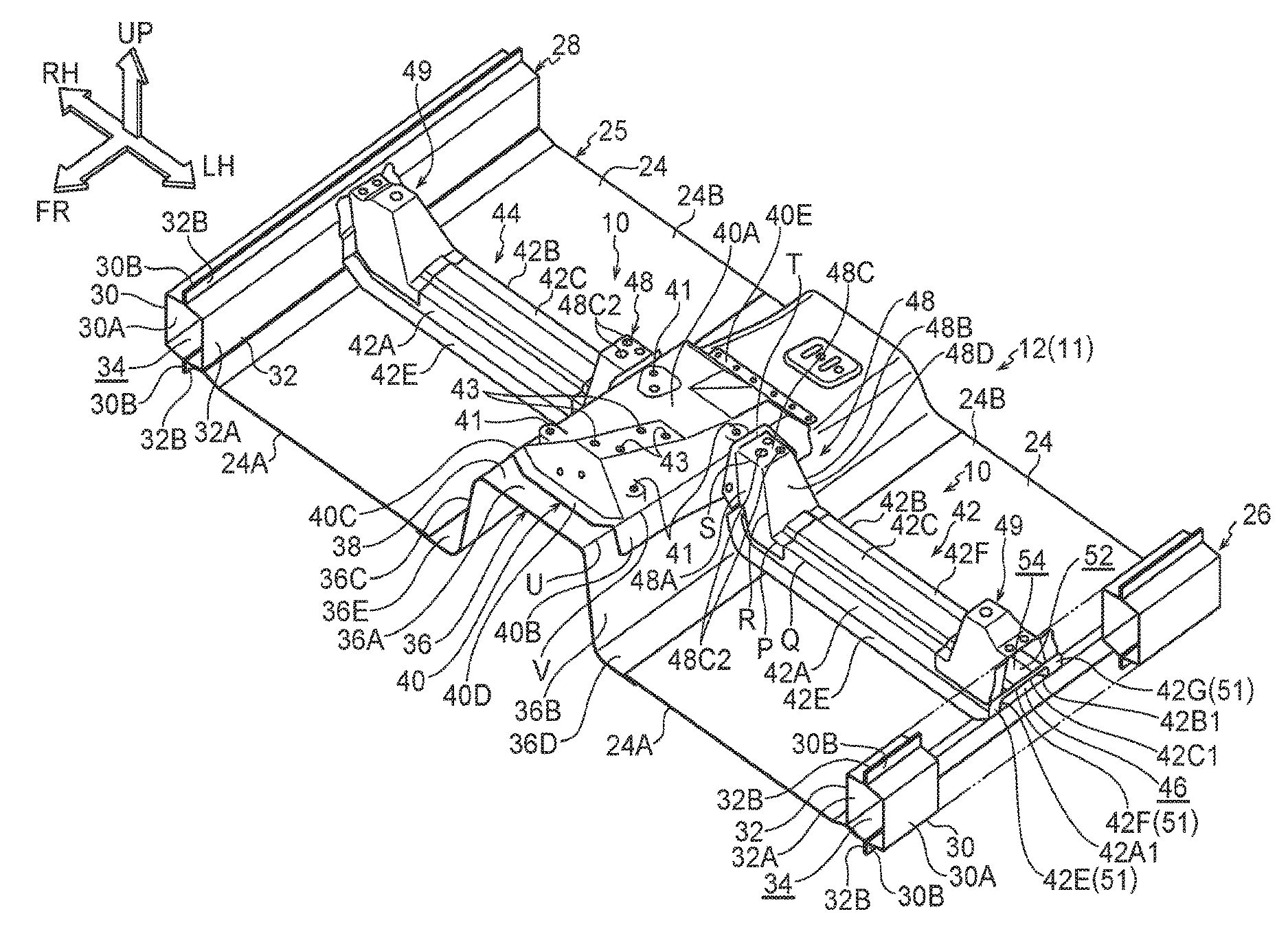

A vehicle skeleton structure including: a tunnel portion that projects upward in a vertical direction at a vehicle width direction central portion of a floor panel, and that extends in a vehicle front-rear direction, the tunnel portion including side wall portions opposing each other in the vehicle width direction, and an upper wall portion that interconnects upper end portions of the side wall portions; a tunnel upper reinforcement member that covers the upper wall portion and the side wall portions of the tunnel portion from an exterior of each and that is joined to the tunnel portion; and a cross member that bridges, along the vehicle width direction, the tunnel portion and a rocker that is disposed at a vehicle width direction outer side of the floor panel, and that extends in the vehicle front-rear direction, the cross member being directly or indirectly joined to the tunnel upper reinforcement member.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B62D Class
- 20.92 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
