Far-side airbag apparatus and method for folding airbag
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Nov 9, 2016
filing date -
Nov 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

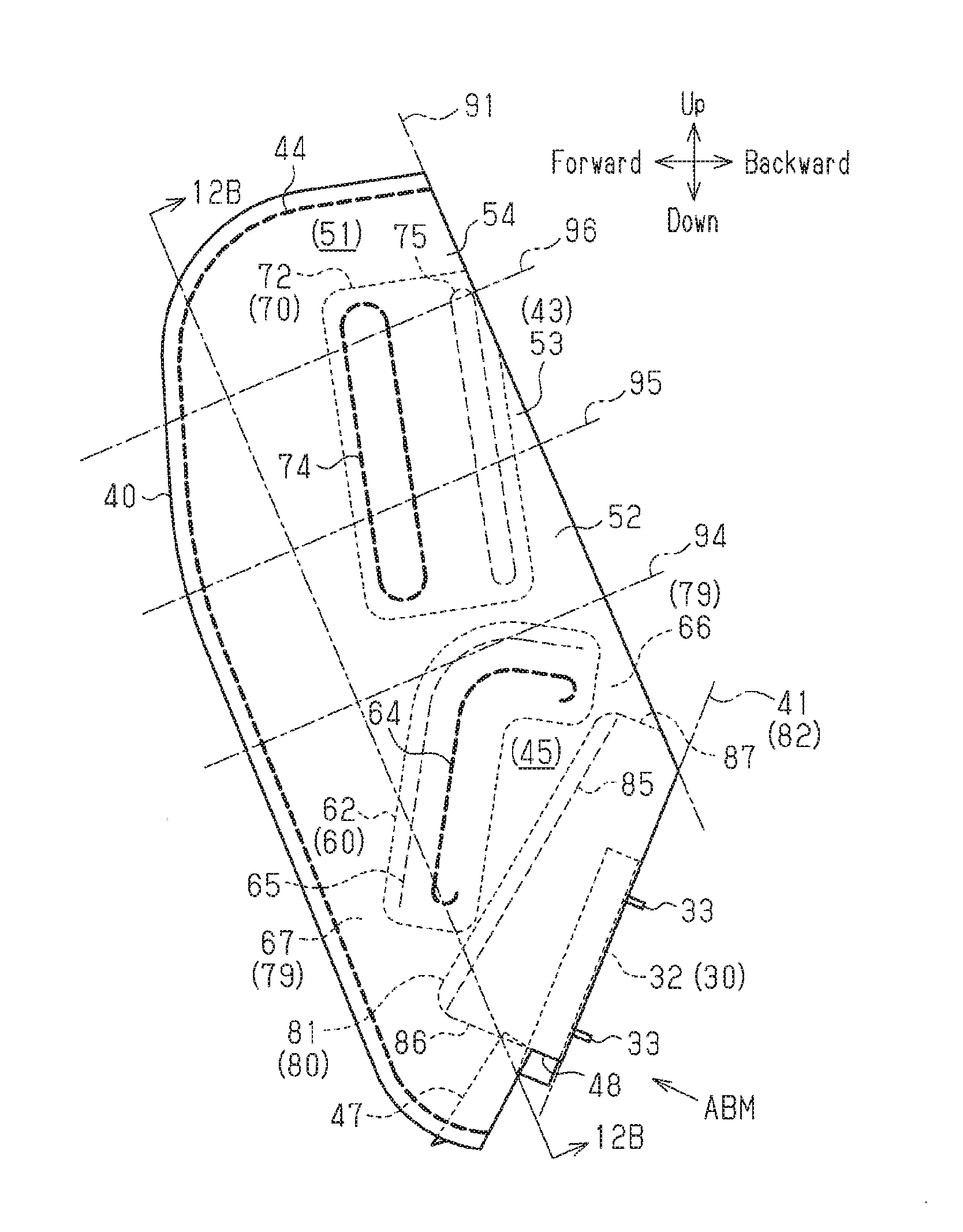

An airbag in an uninflated-and-spread form includes a rear-lower inflation portion and a front-upper inflation portion. The airbag is stored in a first vehicle seat. The vehicle seat adjacent to the first vehicle seat is a second vehicle seat. The front-upper inflation portion includes at least three bend portions, which are arranged in a flowing direction of inflation gas. A form between the uninflated-and-spread form and the storage form is a transitional form. In the transitional form, the bend portions are each bent relative to the adjacent bend portion and rolled toward the second vehicle seat relative to the rear-lower inflation portion such that the closer a bend portion is to the downstream end, the more inward the bend portion is located. In the transitional form, the upper end of the most upstream bend portion is connected to the upper end of the rear-lower inflation portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B60R Class
- 21.41 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
