Vehicle, power source system, and control method of power source system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 10, 2013
filing date -
Oct 10, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

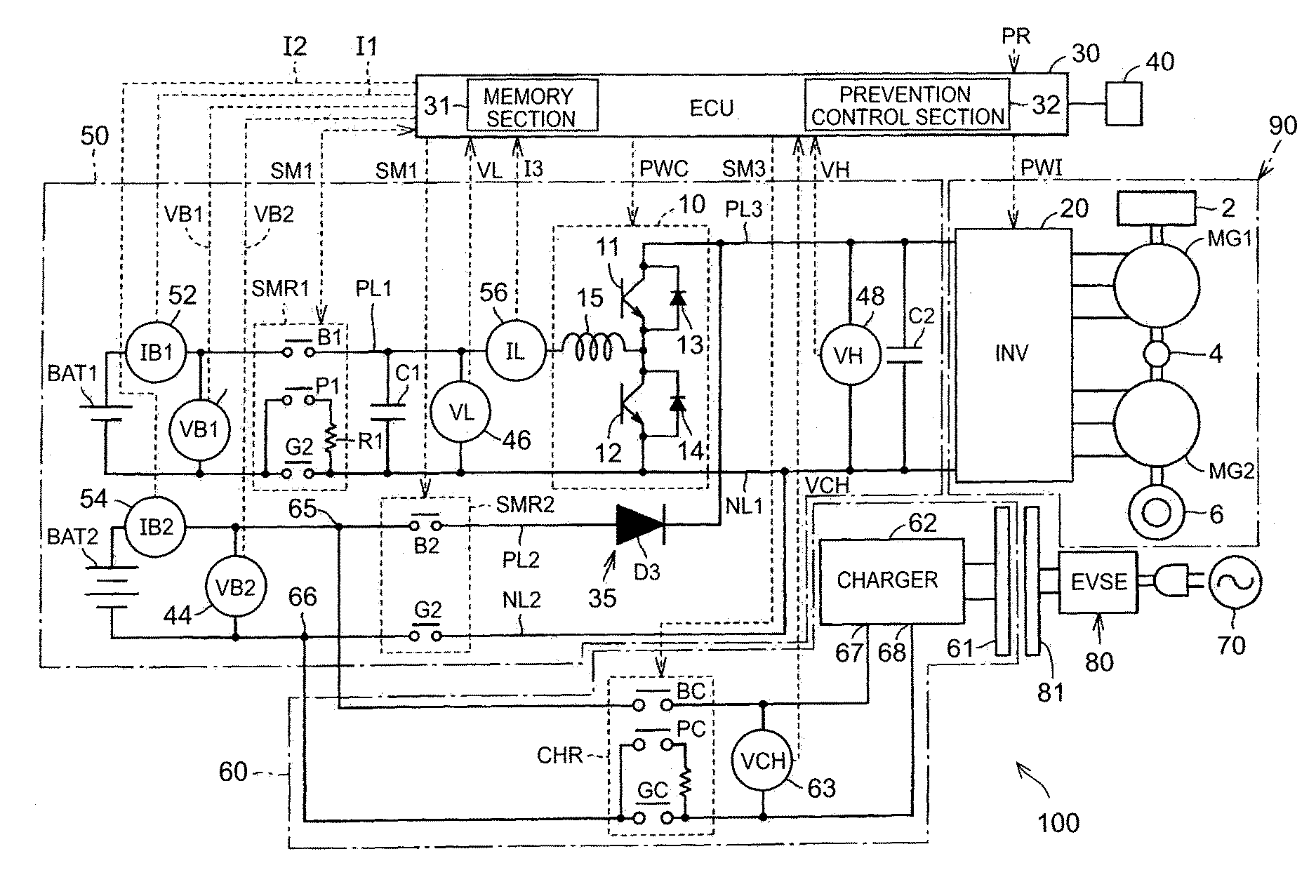

A second power storage device is electrically connected to a positive electrode line and a negative electrode line, and electric power for generating a driving force is directly supplied to an inverter section. A converter section supplies electric power received from the inverter section to a first power storage device. Because a backflow prevention circuit is provided, the electric power is not supplied in the direction of the second power storage device at this point. A diode of the backflow prevention circuit is connected between a system main relay and the connection node of a positive electrode line on the positive electrode line branching off from the positive electrode line and connected to the second power storage device. The diode controls the flow of a current from the positive electrode line side toward the second power storage device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H02J Class
- 3206 Applications Filed
- 2881 Patents Issued To-Date
- 89.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H02J Class
- 22.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
