Wastewater lifting station
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Grant Date -
Jun 9, 2016
app pub date -
Jul 8, 2014
filing date -
Jul 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

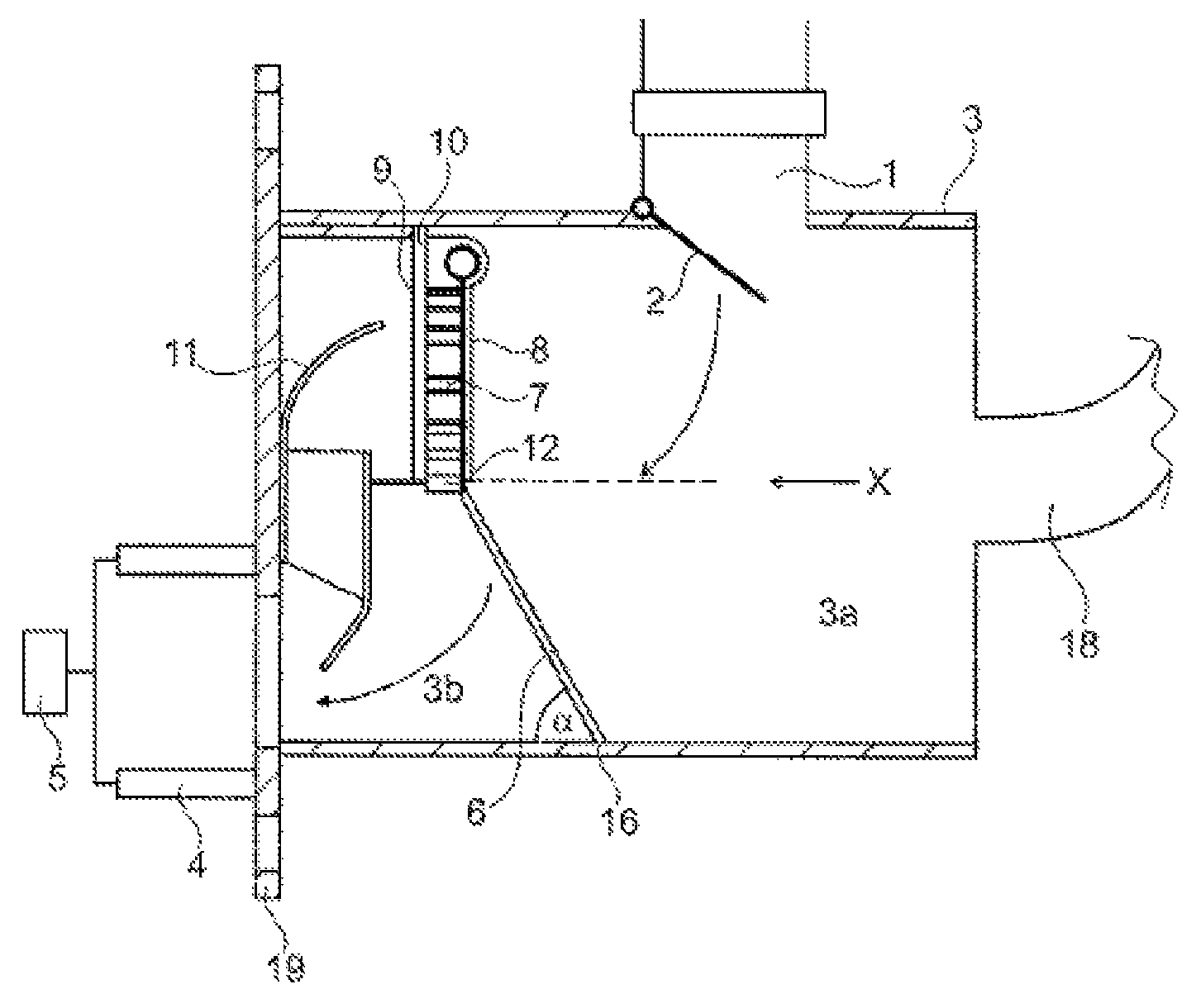

A wastewater lifting station is provided, in which at least one solids collection tank contains at least one screen for guiding wastewater therethrough and retain solids. The screen divides the solids collection tank into a region containing solids and a region free of solids, and is connected in a pivotable manner by at least one hinge to a flange of the solids collection tank. The screen in an edge region away from the hinge has a rake of comb-type webs and holes that are open on one side in the screen plane. The wastewater containing solids flows through a feed into the collection tank, is filtered through the screen, and the wastewater that is free of solids is collected in a tank downstream. When the wastewater lifting station pumps, the wastewater that is free of solids is pumped by a pump in counterflow through the screen into a pressurized line while the feed is shut off by a check valve, and the screen pivots about the hinge and is back-flushed during the process. Reliable cleaning of the screen, even of fibers, is achieved during pumping owing the rake shape and the pivoting of the screen.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E03F Class
- 127 Applications Filed
- 102 Patents Issued To-Date
- 80.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E03F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
