Home appliance with recessed water vessel housing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
May 16, 2012
filing date -
May 16, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

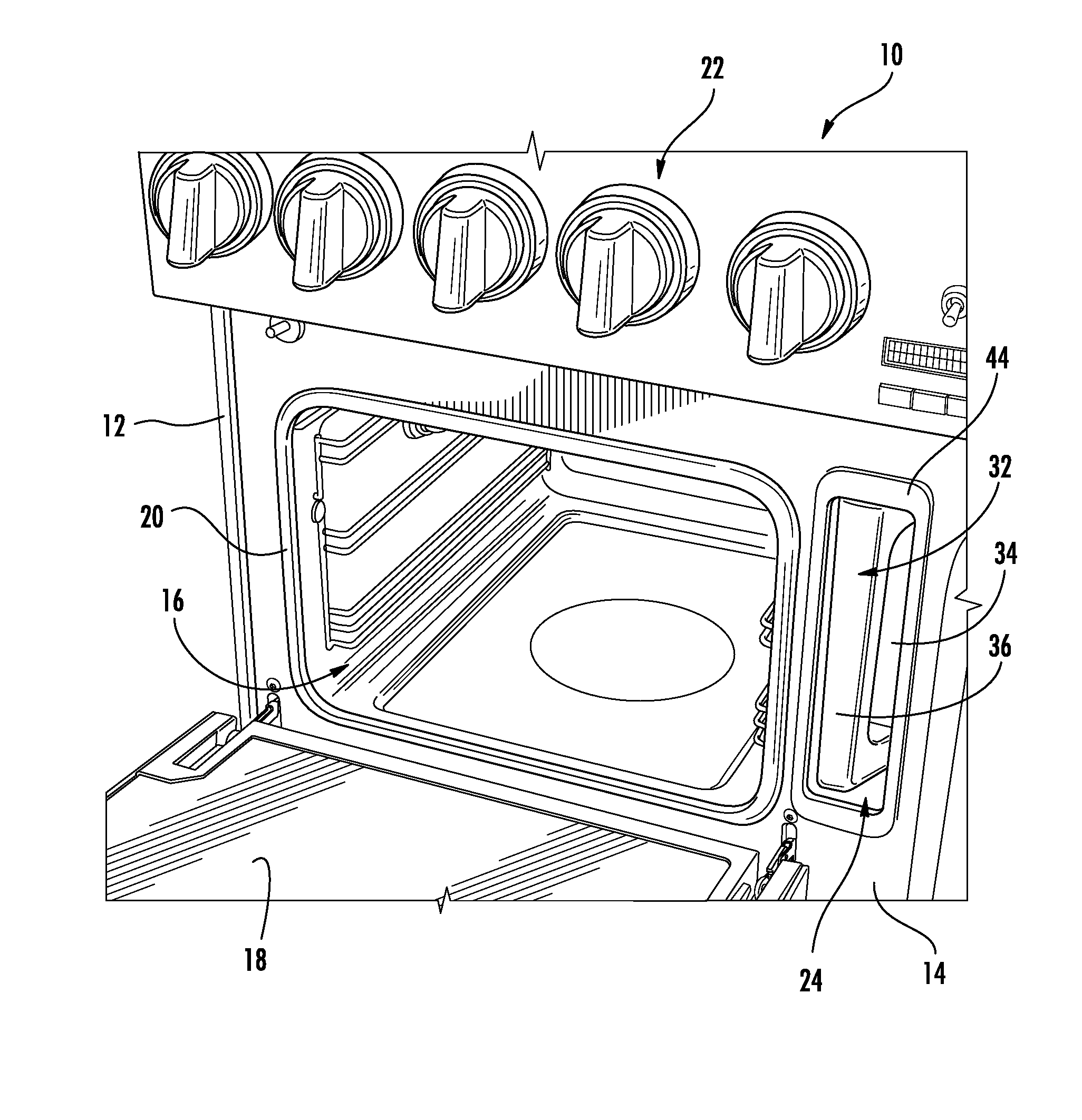

A home appliance having a water-fed steaming apparatus, the home appliance including an appliance body housing the steaming apparatus; a water supply vessel for supplying water to the steaming apparatus; a vessel housing within the appliance body for holding the water supply vessel; and a mounting assembly for mounting the vessel housing to the appliance body, the mounting assembly including a bezel having a locking element; a bracket engaged with the vessel housing and the locking element; and a spacer element extending between the appliance body and the bracket to define an air gap between the vessel housing and the appliance body for air flow between the vessel housing and the appliance body for cooling the vessel housing.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 26 Citation Count
- A47J Class
- 99.78 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
