Multi-function handle for Information Handling System (IHS) chassis
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Oct 23, 2015
filing date -
Oct 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

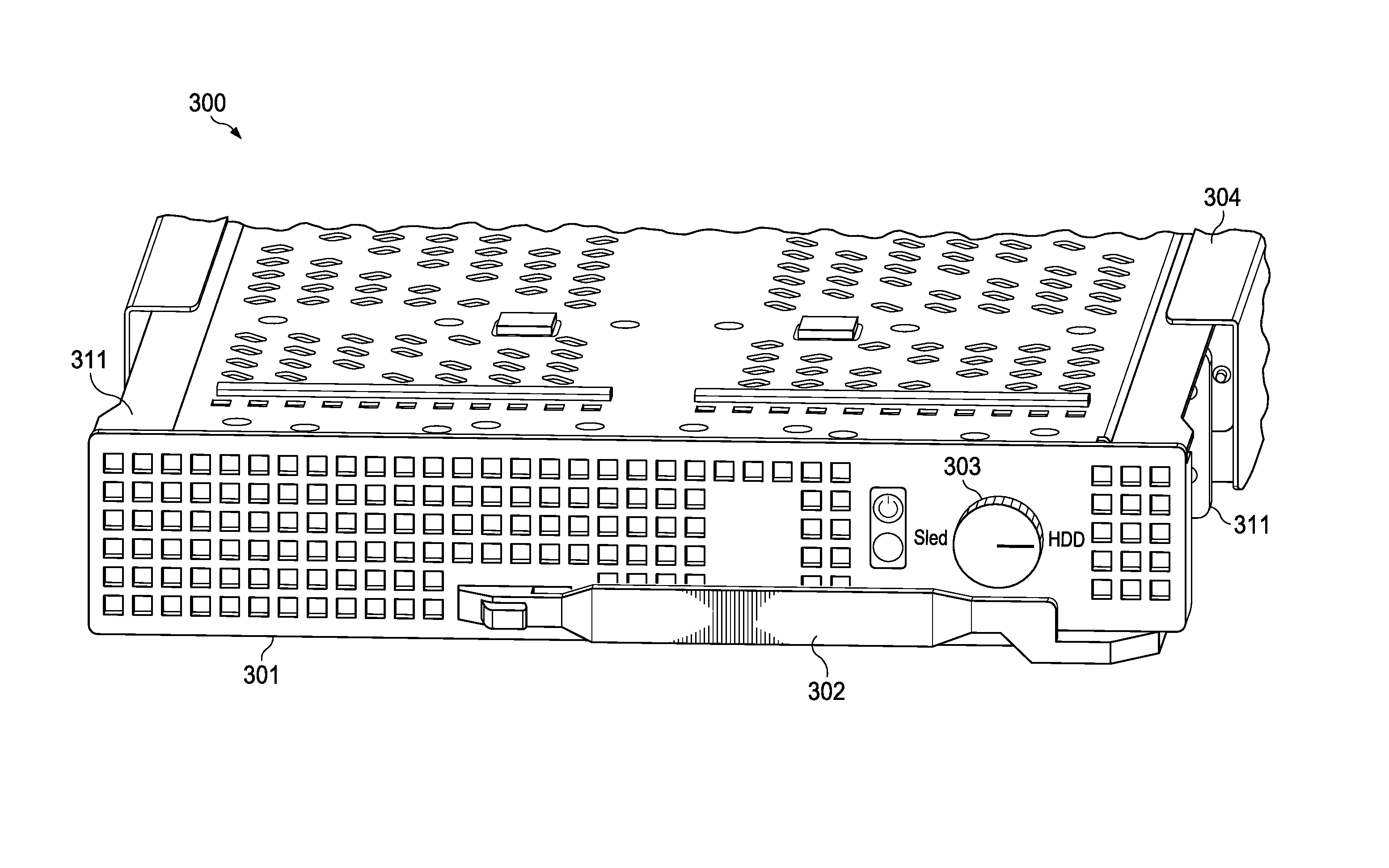

A multi-function handle for Information Handling System (IHS) chassis is described. In some embodiments, a chassis may include a sled configured to be installed in a rack; a drawer configured to slide in and out of the sled; and a front panel comprising a handle and a selector, the selector configured to allow a user to selectively pull from the rack using the handle: (i) the drawer without the sled, or (ii) the sled and the drawer. A method may include accessing a chassis installed in a rack, the chassis comprising: (i) a drawer configured to slide in and out of a sled; and (ii) a front panel having a handle and a selector; determining that the selector is in a first position; and pulling the handle to slide the drawer without the sled outward from the rack.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G11B Class
- 29.18 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
