Gesture based control of a utility
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jan 16, 2015
filing date -
Jan 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

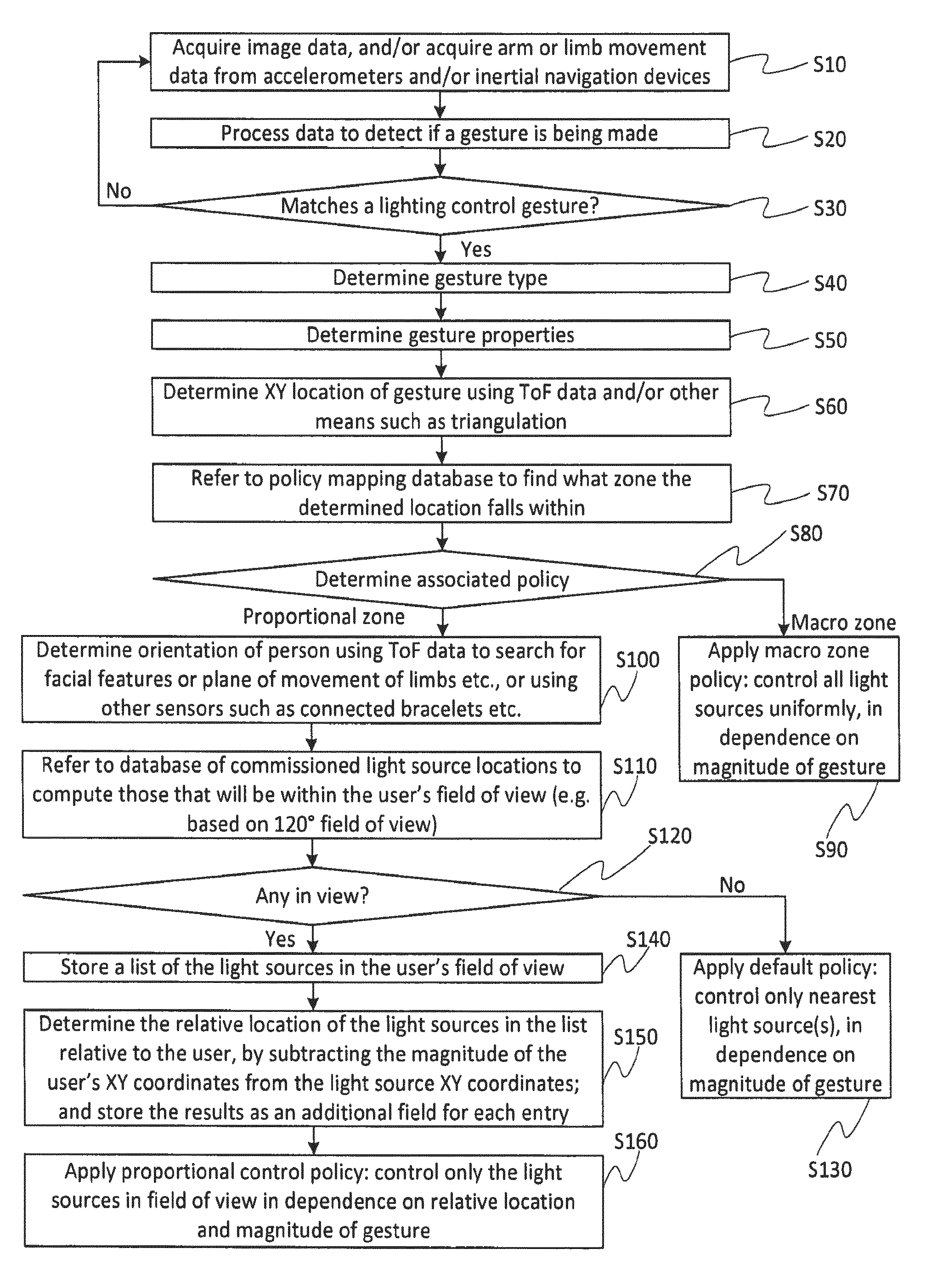

A controller, method and program for controlling one or more sources of a utility to provide the utility into a space occupied by one or more users, e.g. for controlling light sources illuminating an indoor or outdoor space. An input from one or more sensors is processed to detect motions of a user in the space, to detect that the motions correspond to predetermined gestures performed by the user, and to detect a position from which each gesture was performed. Further, each of a plurality of discrete control policies is associated with a respective combination of predetermined gesture and positional demarcation within the space. Each control policy defines a respective response of the utility to the respective associated gesture. For gestures performed from each of a plurality of different positions, a different control policy is selected based on being associated with the detected gesture and detected position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H05B Class
- 3093 Applications Filed
- 2473 Patents Issued To-Date
- 79.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
