Health checking in a distributed load balancer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Apr 16, 2013
filing date -
Apr 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

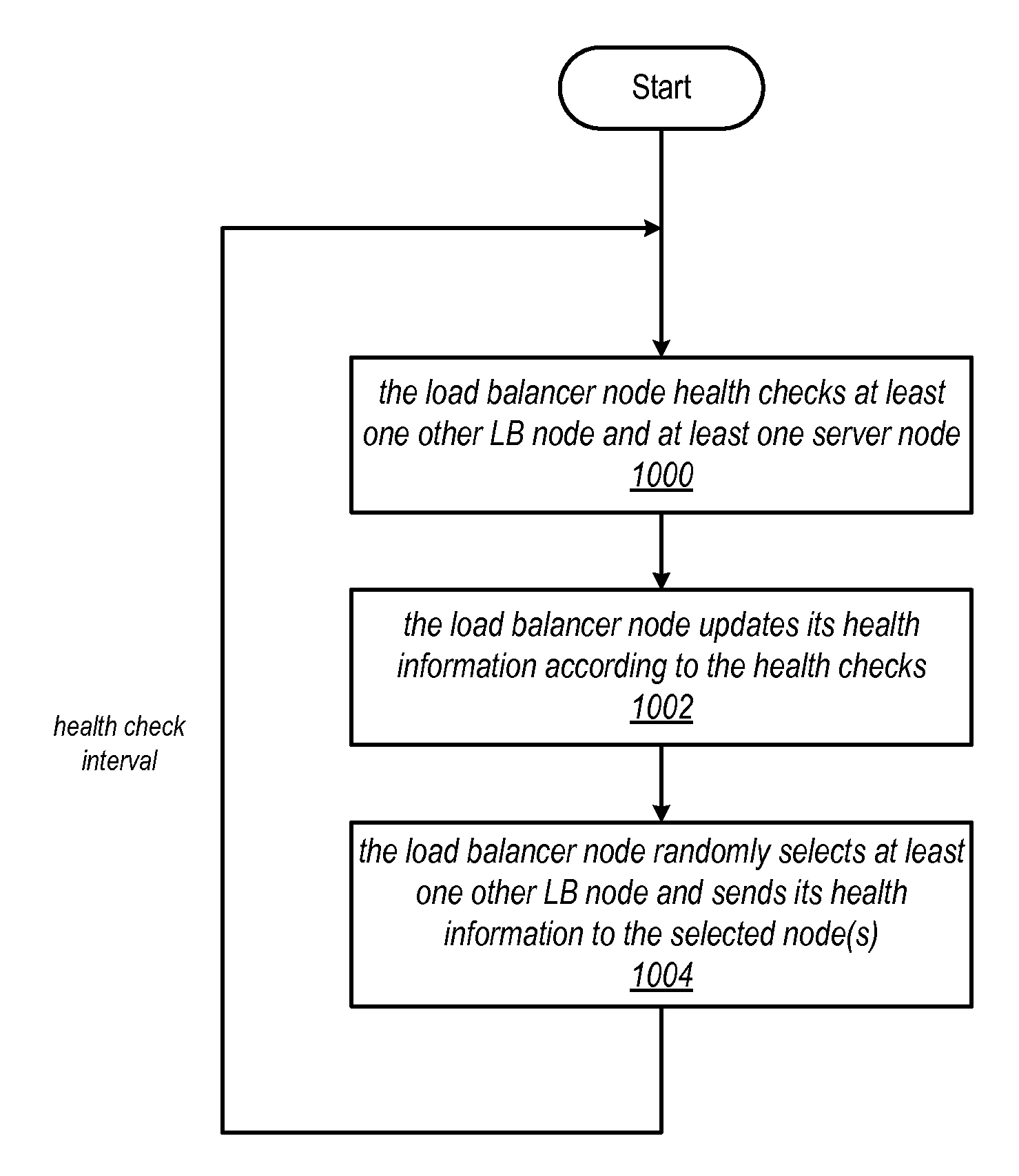

A health check method for a distributed load balancer in which a router receives packets from at least one client and routes packet flows to multiple load balancer (LB) nodes, which in turn distribute the packet flows among multiple server nodes. Each LB node may be responsible for health checking one or more other LB nodes. In addition, each LB node may health check one or more of the server nodes. Heartbeat information for the nodes may be disseminated among the LB nodes according to a gossip protocol. The LB nodes may send LB node membership information to the server nodes. Failure of a node may be detected by the LB nodes according to the heartbeat information, and appropriate actions taken.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H04L Class
- 23397 Applications Filed
- 19833 Patents Issued To-Date
- 84.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- H04L Class
- 81.65 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
