Bi-phased on-off keying (OOK) transmitter and communication method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jan 23, 2017
filing date -
Mar 10, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

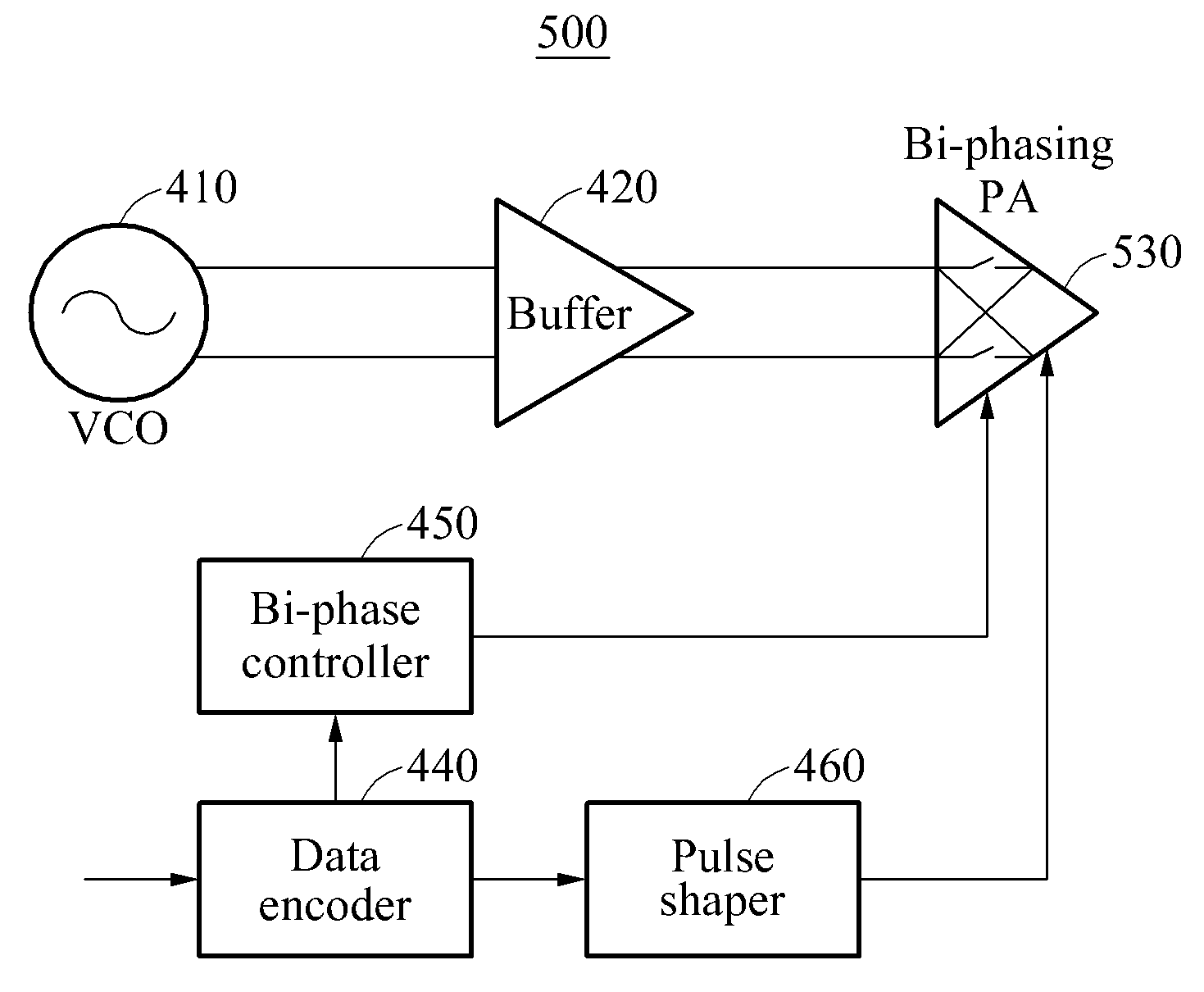

An on-off keying (OOK) transmitter and communication method are provided. The OOK transmitter may include a data encoder configured to encode input data into a transmission sequence, a pulse shaper configured to generate pulses based on the transmission sequence, a bi-phase controller configured to generate a control signal to control a random change in phase, between two phases, of a carrier based on the transmission sequence, a bi-phased switch configured to randomly change a phase of the carrier generated by a voltage-controlled oscillator (VCO), based on the control signal, and a power amplifier (PA) configured to generate a transmission signal based on the generated pulses and the carrier with the randomly changed phase. The PA may be a bi-phasing PA, and the bi-phased switch may be included in the bi-phasing PA.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
