Arrangement and method for radio-frequency (RF) high power generation for compensating a failed power amplifier module
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Grant Date -
Nov 17, 2016
app pub date -
Jan 24, 2014
filing date -
Jan 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

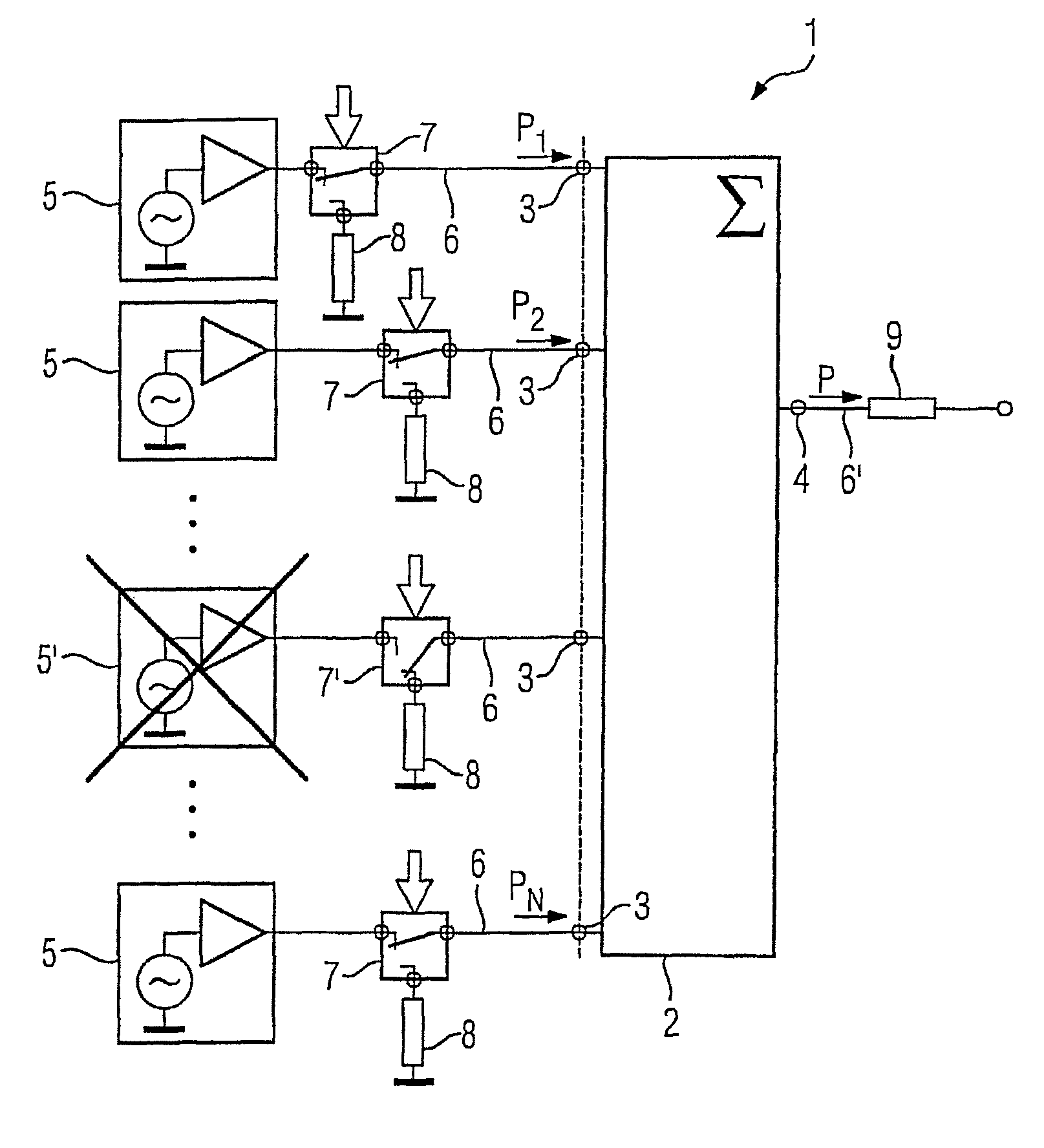

An arrangement and method for radio-frequency (RF) high power generation which compensate for a failed power amplifier module includes at least one power combiner having RF inputs and at least one RF output, and at least two power amplifier modules electrically connected to a respective input by at least one transmission line, and at least one RF switch formed by the at least one transmission line with a complex load electrically connected to the at least one RF switch.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- H03F Class
- 1020 Applications Filed
- 951 Patents Issued To-Date
- 93.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
