Electric tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jan 31, 2014
filing date -
Feb 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

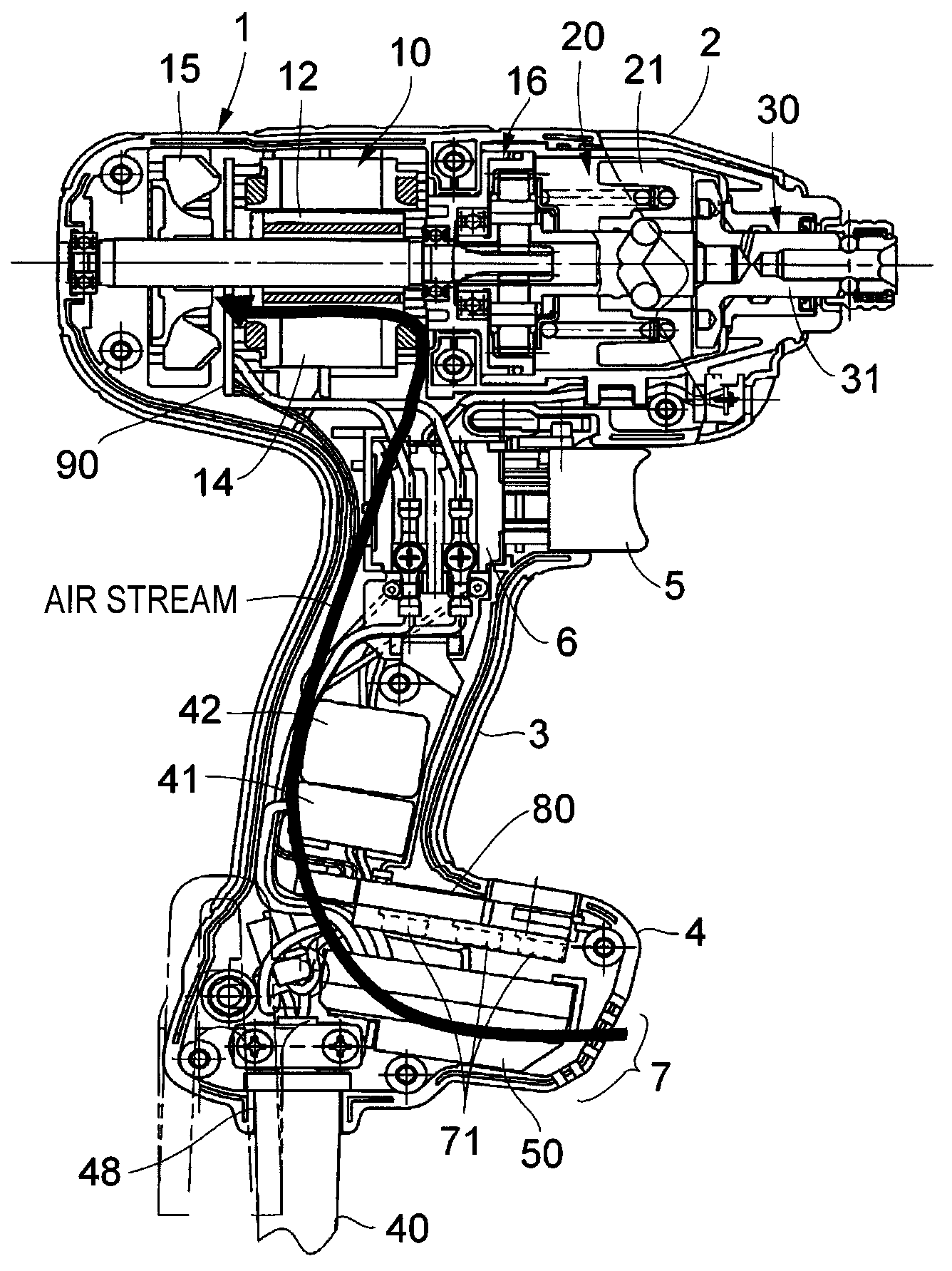

In the present invention, a housing having a trunk part accommodating therein a brushless motor and an output part to which a tip tool is to be connected, a handle part having one end connected to the trunk part, and an accommodation part provided at an other end of the handle part is used, and a FET serving as a switching element that supplies power to the motor is accommodated in the accommodation part from which a power supply cord is pulled out. It is possible to reduce the length of the trunk part in the front-rear direction compared to a case where the FET is disposed in the front-rear direction of the motor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H02K Class
- 2148 Applications Filed
- 1788 Patents Issued To-Date
- 83.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H02K Class
- 23.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
