Overcurrent protection circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Grant Date -
Jun 29, 2017
app pub date -
Dec 19, 2016
filing date -
Dec 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

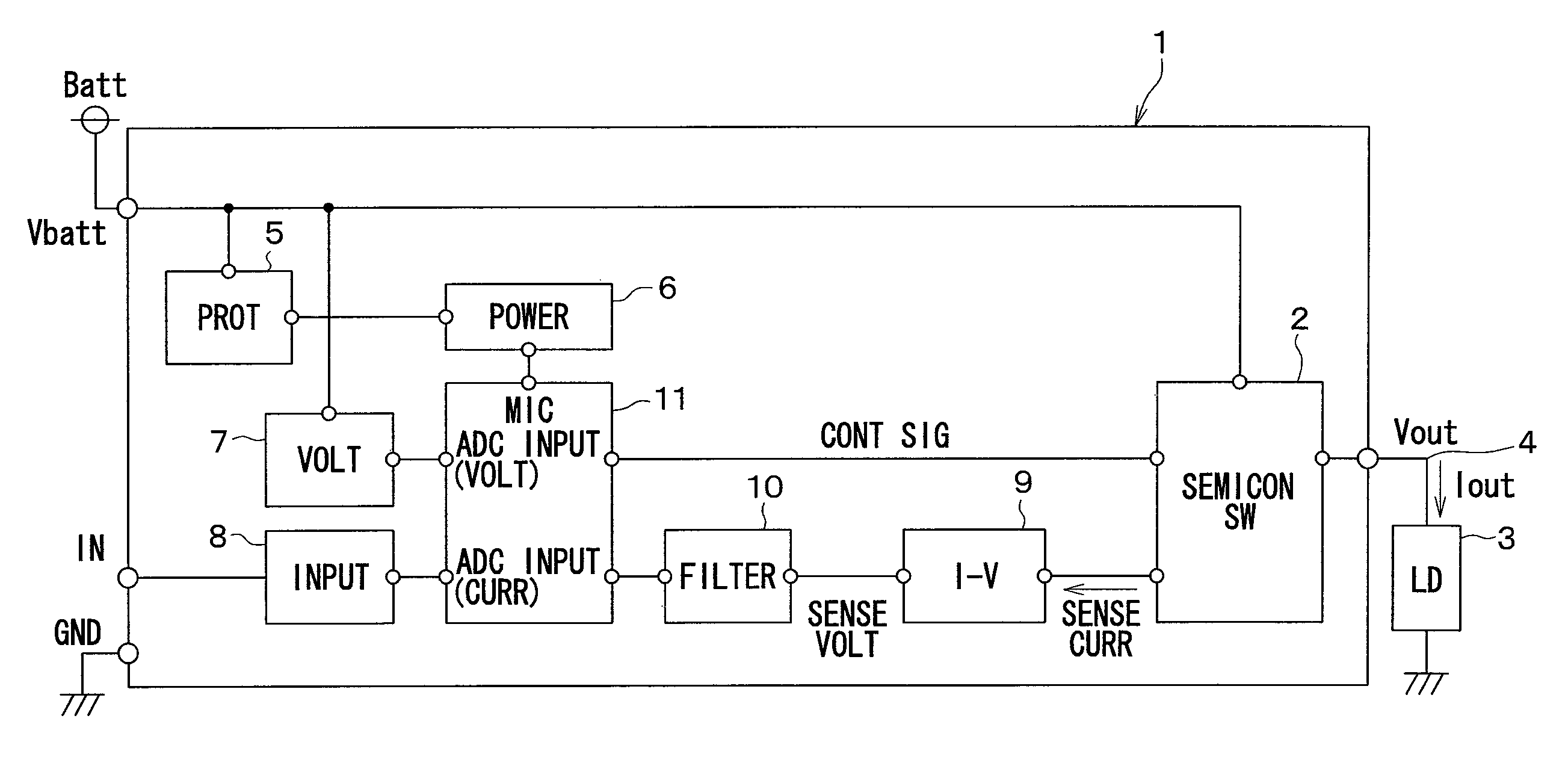

An overcurrent protection circuit includes a load drive portion that drives a load based on a power supply voltage; a wire that connects the load and the load drive portion; a current detection portion that detects a load current showing a value of a current flowing through the load; a voltage detection portion; and a controller that controls the load drive portion to control a drive of the load, the controller determining an addition-and-subtraction value, controlling the load drive portion to cut off the load current, and stopping driving the load to protect a protection target from an overcurrent. The controller subtracts the integration value based on an elapsed time after cutoff of the load current. The controller controls the load drive portion to again start to drive the load, and also calculates a post-correction integration value lower than a pre-correction integration value by correcting the pre-correction integration value.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02P Class
- 22.30 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
