Transparent electrode, electronic device, and organic electroluminescent device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Nov 25, 2013
filing date -
Nov 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

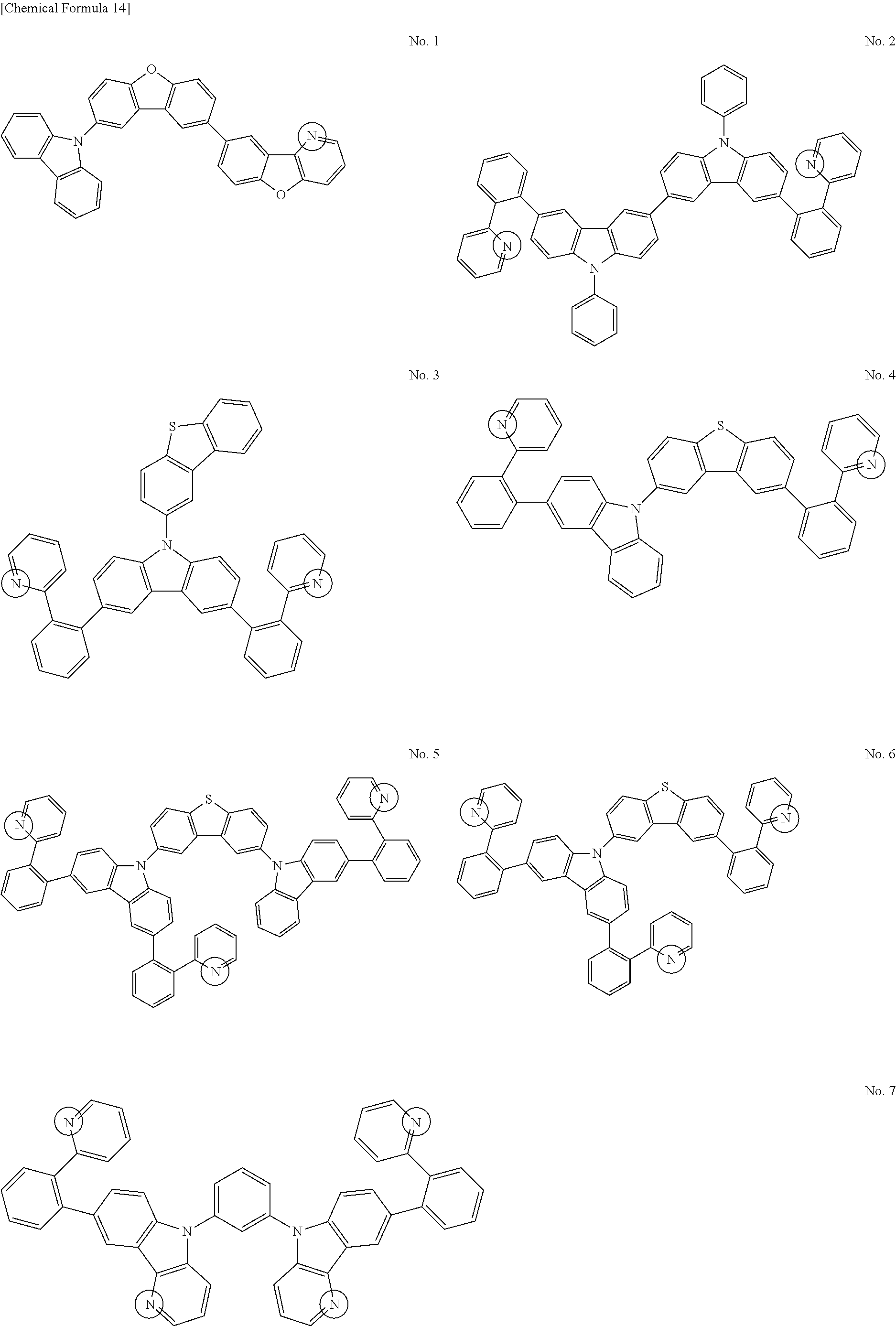

Provided is a transparent electrode including a nitrogen-containing layer and an electrode layer provided adjacent thereto. The nitrogen-containing layer includes a compound that contains a nitrogen atom or atoms and has an effective lone pair content n/M of 2.0×10−3 or more, wherein n represents the number of unshared electron pairs that neither contribute to aromaticity nor are coordinated to metal among the unshared electron pairs of the nitrogen atom or atoms, and M represents the molecular weight of the compound. The electrode layer includes silver as a main component and at least one additive element selected from aluminum, gold, indium, copper, palladium, and platinum.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2013 Application Filing Year
- H01L Class
- 22267 Applications Filed
- 20713 Patents Issued To-Date
- 93.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
