Top emitting semiconductor light emitting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Mar 31, 2014
filing date -
Apr 11, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

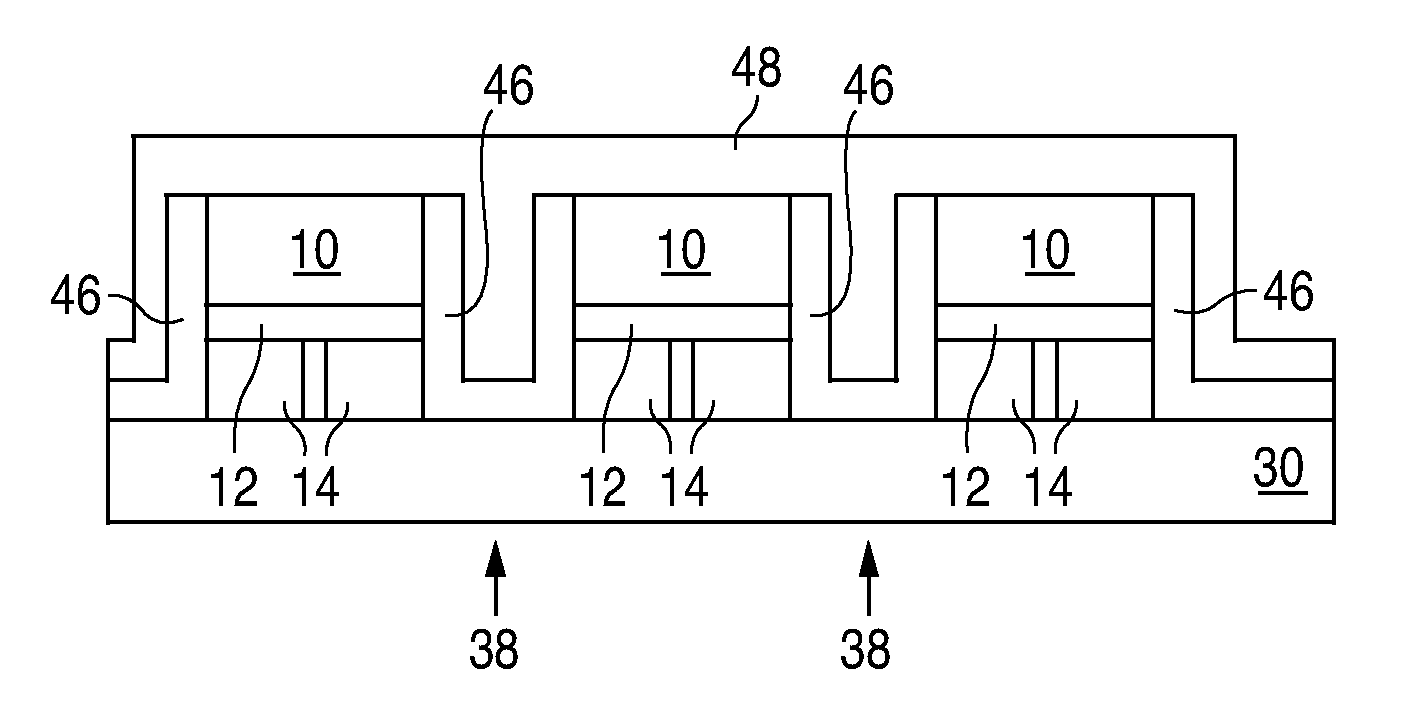

Embodiments of the invention include a semiconductor structure including a light emitting layer sandwiched between an n-type region and a p-type region. A growth substrate is attached to the semiconductor structure. The growth substrate has at least one angled sidewall. A reflective layer is disposed on the angled sidewall. A majority of light extracted from the semiconductor structure and the growth substrate is extracted through a first surface of the growth substrate.
