Method for forming semiconductor device structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Oct 24, 2016
filing date -
Dec 27, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

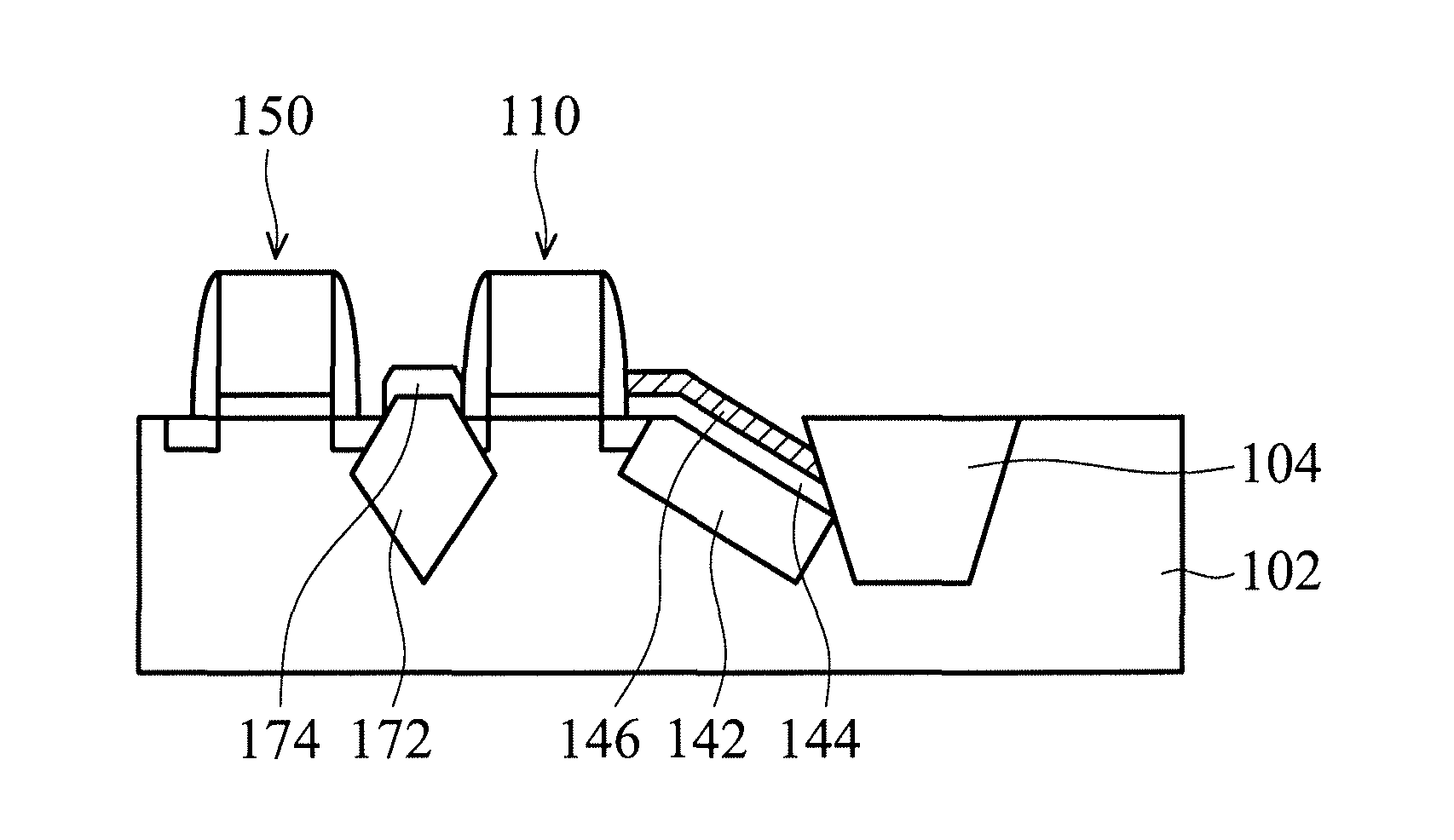

The semiconductor device structures are provided. The semiconductor device structure includes a gate stack structure formed on a substrate and an isolation structure formed in the substrate. The semiconductor device structure further includes a source/drain stressor structure formed between the gate stack structure and the isolation structure and a metal silicide layer formed on the source/drain stressor structure. A portion of the metal silicide layer is below a top surface of the isolation structure.
