Power MOSFETs and methods for manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Dec 21, 2015
filing date -
Dec 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

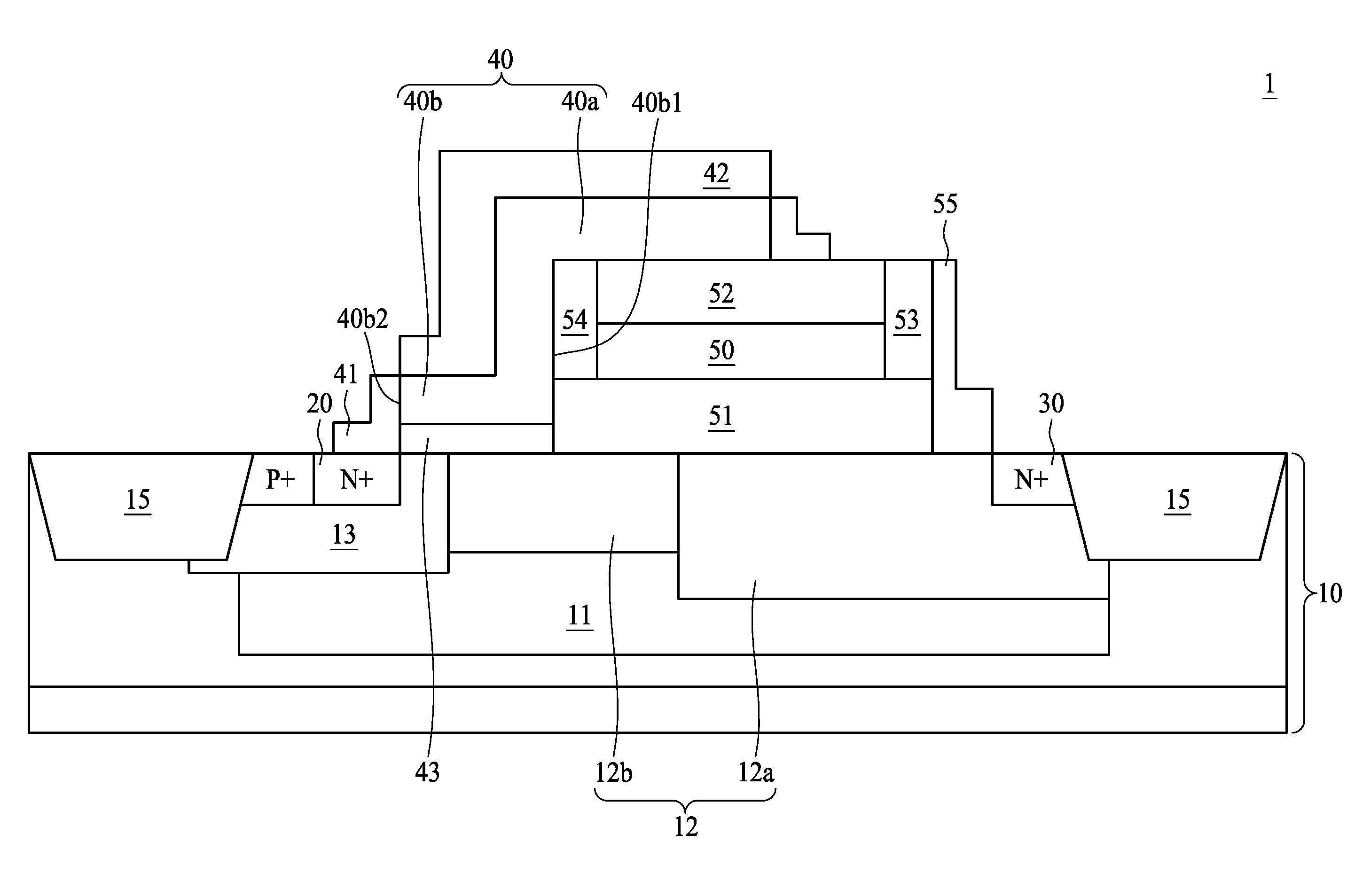

A semiconductor device and the method of manufacturing the same are provided. The semiconductor device includes a substrate, a source region, a drain region, a filed plate and a gate electrode. The source region is of a first conductivity type located at a first side within the substrate. The drain region is of the first conductive type located at a second side within the substrate opposite to the first side. The field plate is located over the substrate and between the source region and the drain region. A portion of the gate electrode is located over the field plate.
