Metal gate scheme for device and methods of forming

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9871114
SERIAL NO

14871580

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

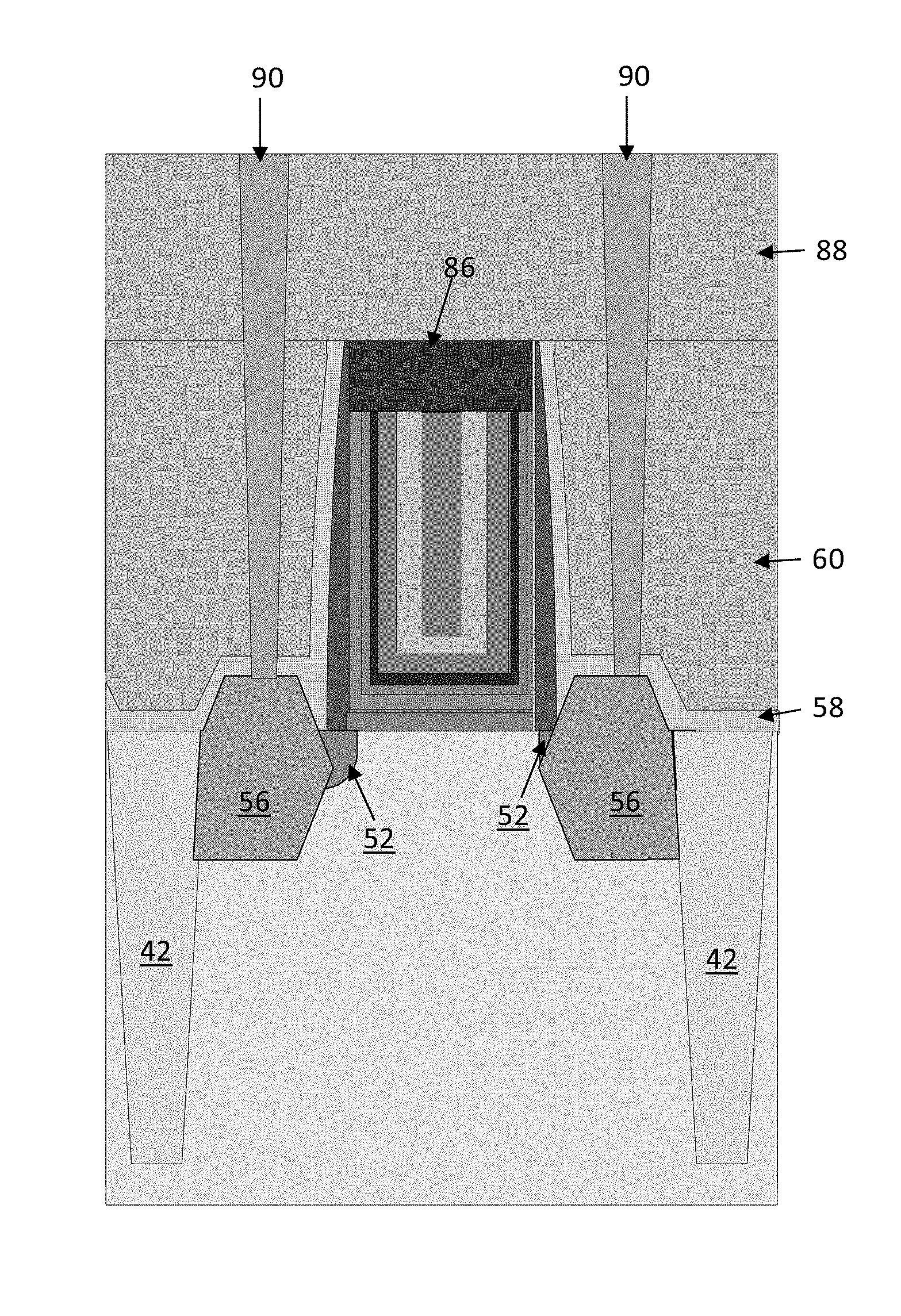

Gate structures and methods of forming the gate structures are described. In some embodiments, a method includes forming source/drain regions in a substrate, and forming a gate structure between the source/drain regions. The gate structure includes a gate dielectric layer over the substrate, a work function tuning layer over the gate dielectric layer, a metal-containing compound over the work function tuning layer, and a metal over the metal-containing compound, wherein the metal-containing compound comprises the metal as an element of the compound.
