Flexible display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Sep 29, 2015
filing date -
Mar 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

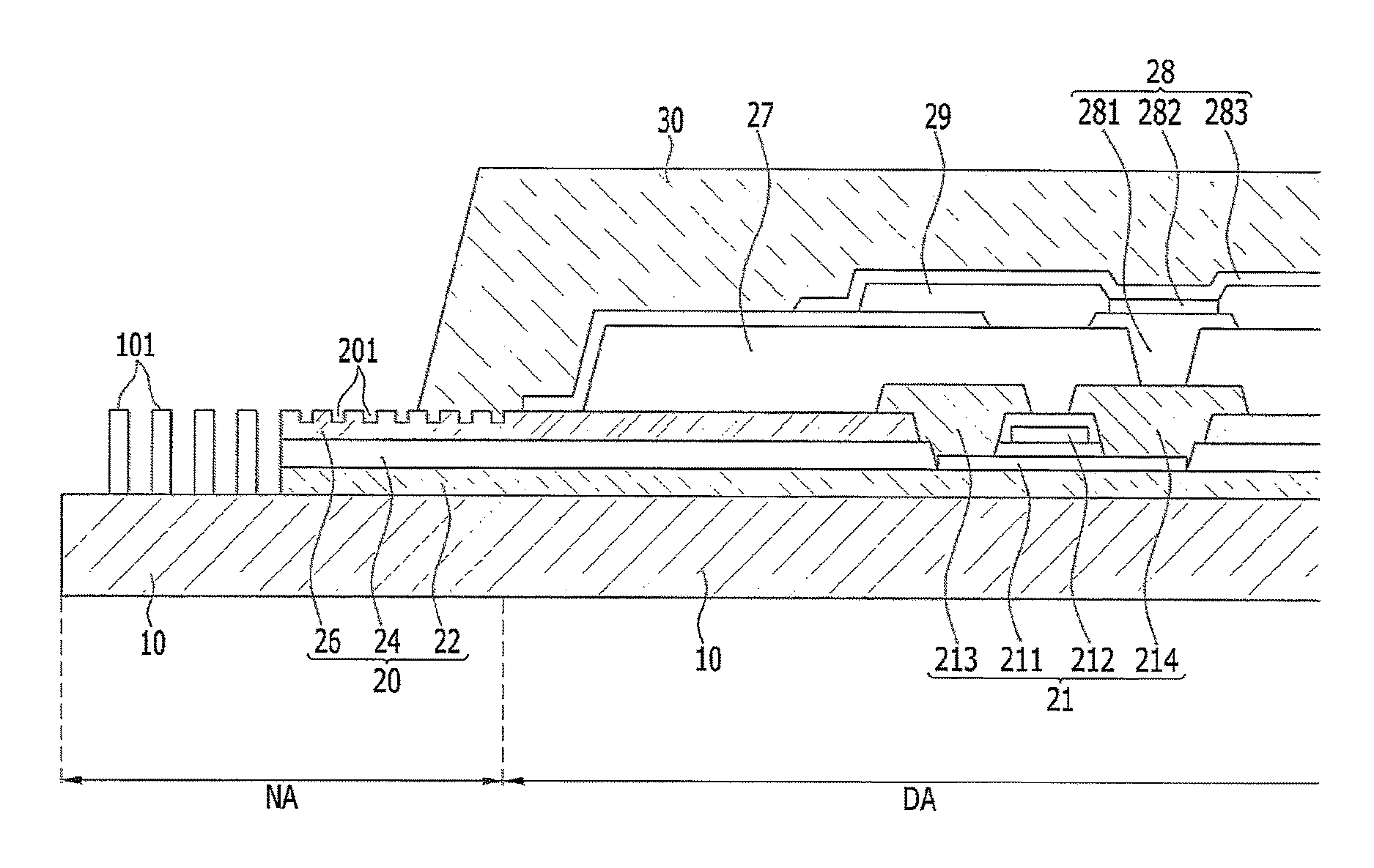

A flexible display device is disclosed. In one aspect, the device includes a display substrate including a display area and a non-display area surrounding the display area, wherein the display area includes an emission element layer. An inorganic layer is formed over the display substrate in the display area and the non-display area, and a thin film encapsulation layer is formed over the inorganic layer and covering at least a portion of the inorganic layer. A plurality of dummy patterns are formed over the display substrate and the inorganic layer. The dummy patterns include a plurality of first dummy patterns formed in the non-display area of the display substrate not overlapping the inorganic layer, and a plurality of second dummy patterns formed in the non-display area of the of the display substrate overlapping the inorganic layer.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2015 Application Filing Year
- H01L Class
- 25498 Applications Filed
- 22451 Patents Issued To-Date
- 88.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
