Multi-piece electrode aperture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jan 19, 2017
filing date -
Jan 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

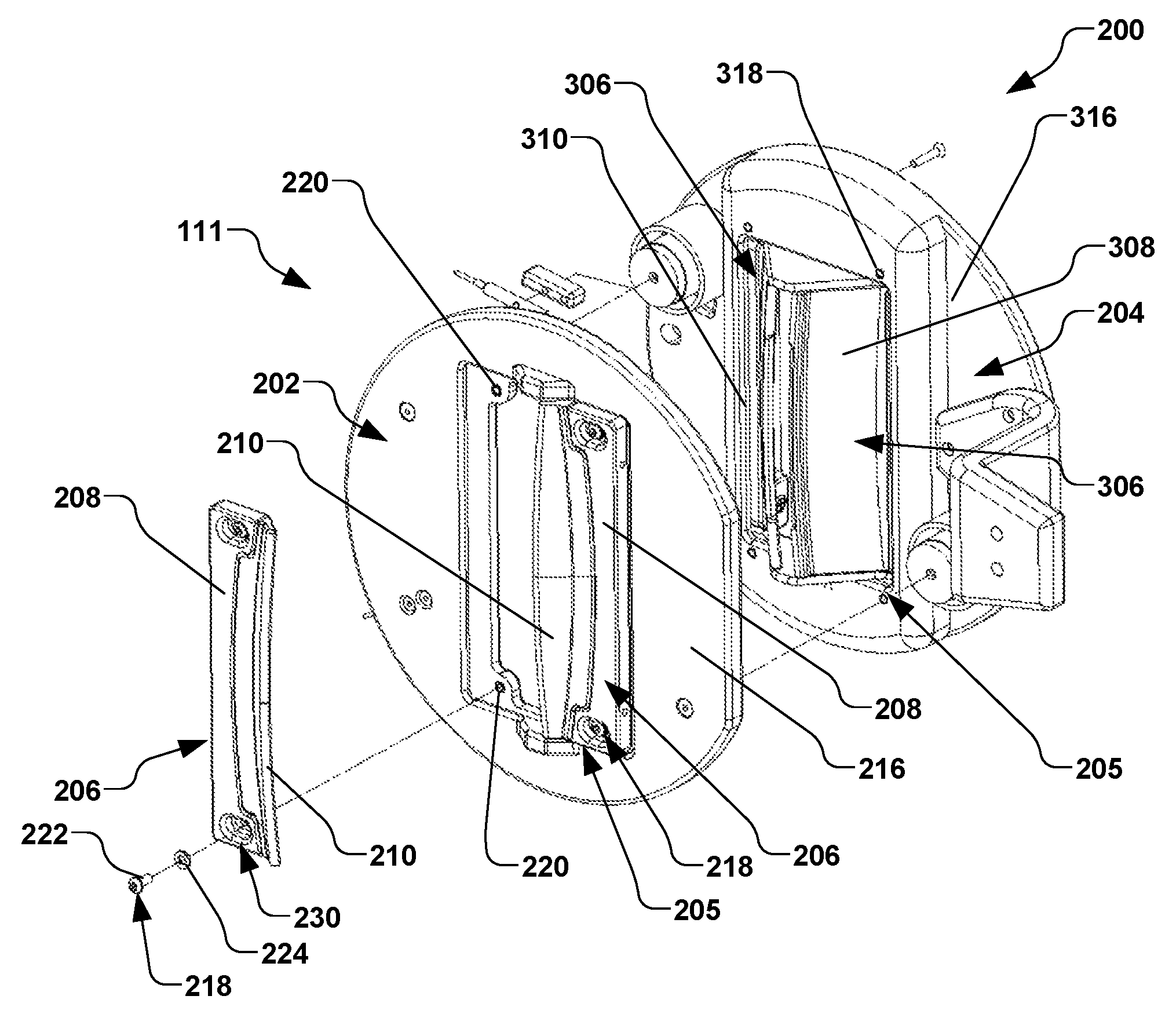

An optics plate for an ion implantation system, the optics plate comprising a pair of aperture assemblies. Each pair of aperture assemblies respectively comprises a first aperture member, a second aperture member; and an aperture fastener, wherein the aperture fastener fastens the first aperture member to the second aperture member. An aperture tip may be also fastened to the second aperture member. One or more of the first aperture member, second aperture member, aperture tip, and aperture fastener is made of one or more of a refractory metal, tungsten, lanthanated tungsten alloy, yttrium tungsten alloy, and/or graphite and silicon carbide. The aperture assemblies may define an extraction electrode assembly, a ground electrode assembly, or other electrode assembly in the ion implantation system. The aperture fastener may be a screw and a bevel washer. The first aperture member may be operably coupled to a base plate via an aperture assembly fastener.
