Stabilization of one or more upper sensors in multi-sensor readers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Apr 17, 2017
filing date -
Apr 15, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

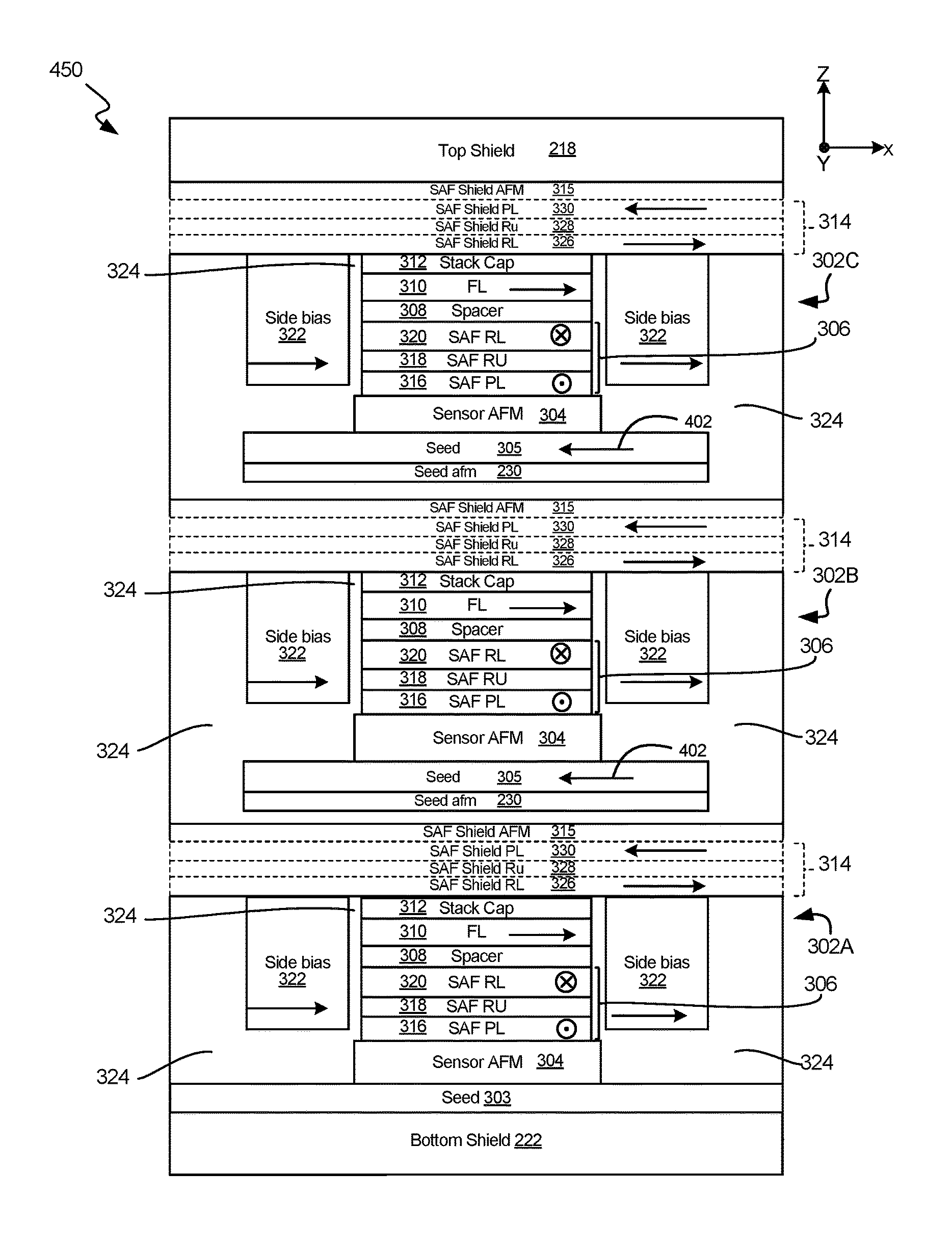

A multi-sensor reader that includes a first sensor that has a first sensor stack, which includes a sensing layer that has a magnetization that changes according to an external magnetic field. The first sensor also includes a first seed layer below the first sensor stack. The multi-sensor reader also includes a second sensor stacked over the first sensor. The second sensor includes a second sensor stack, which includes a sensing layer that has a magnetization that changes according to the external magnetic field. The second sensor also includes a second seed layer below the second sensor stack. A stabilization element is included to maintain a magnetization direction of the second seed layer and to stabilize the second seed layer.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G11B Class
- 29.18 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
